Revotron 1.2T
98

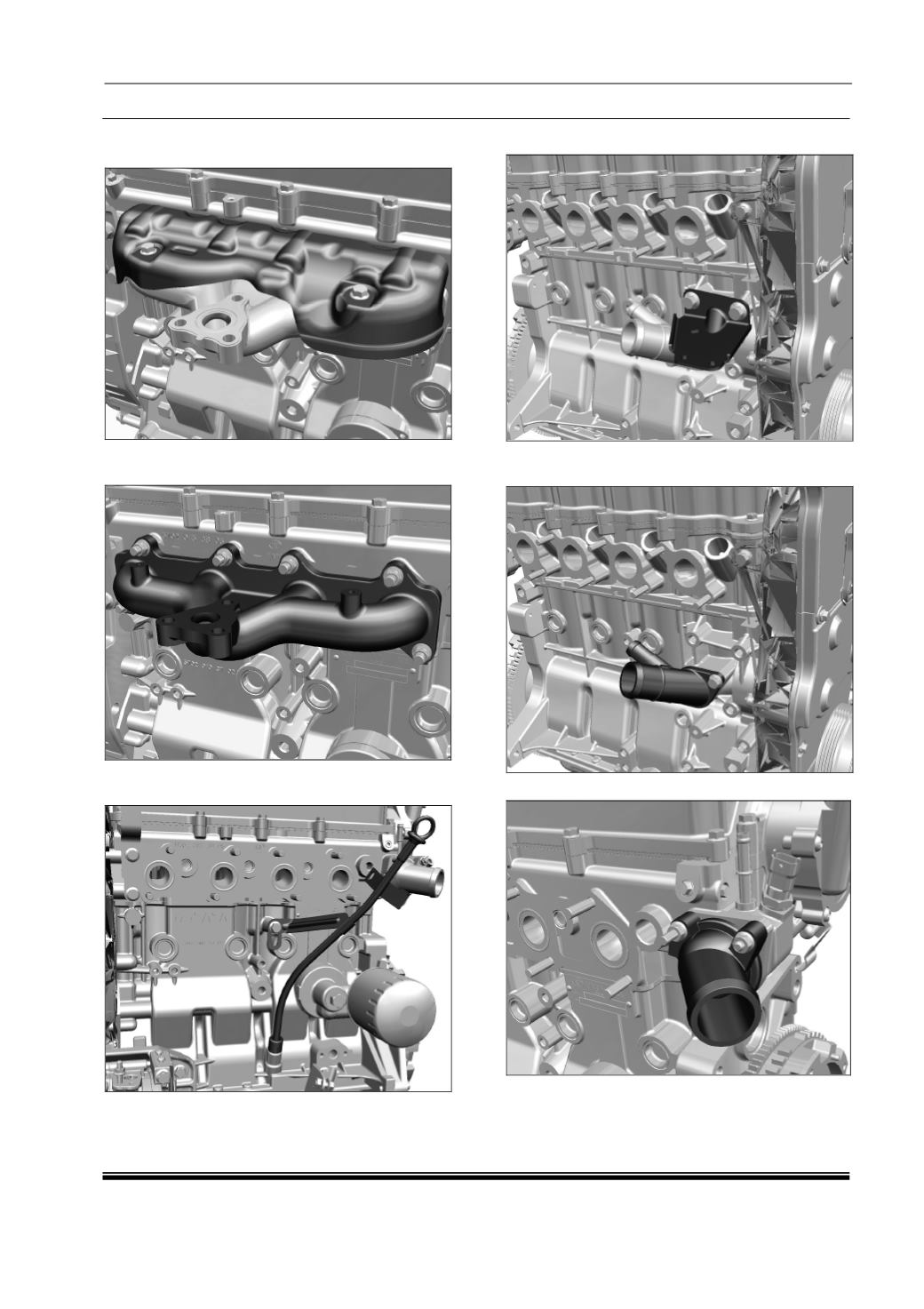

12. Remove Heat Shield Assembly from Exhaust
Manifold.
13. Remove the Exhaust Manifold along with the
Gasket from the Engine Block.
14. Remove Dipstick Assembly from Engine
Block.
15. Remove Alternator Bracket top Support.
16. Remove Water Inlet along with Gasket from
Engine Block.
17. Remove Thermostat Cover.
