Revotron 1.2T
80
D. EXHAUST SYSTEM :

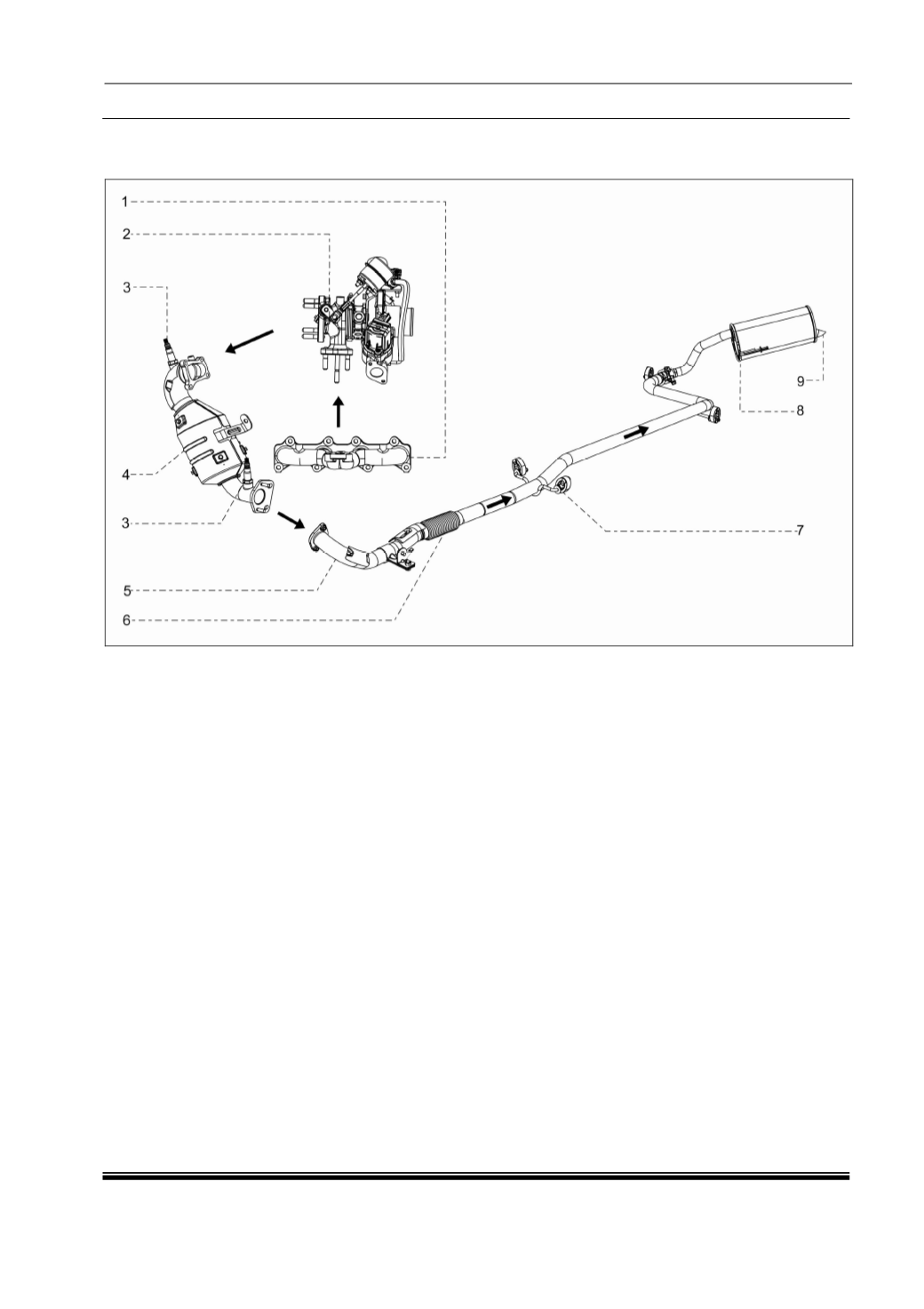

Exhaust System Schematic Layout :
1 Exhaust Manifold
6 Flex Bellow
2 Turbocharger
7 Mounting Hanger
3 Lambda Sensor
8 Muffler Assy
4 Close Coupled Catcon
9 Tail Pipe
5 Front Pipe Assy
Description :
The exhaust system consists of an
Exhaust manifold, Close Coupled Catcon
Assy (CCC) and Silencer. The exhaust pipes
are supported using rubber hangers. Flange
joints are provided at each component to
accommodate removal of each component
individually.
The Close Coupled Catcon (CCC) is
provided to reduce the exhaust emission,
whereas the silencer is provided to dampen
the sound of the exhaust gases coming out of
the engine.
The exhaust system consist of the
following components
1. Exhaust Manifold
2. Turbocharger
3. Lambda Sensor
4. Close Coupled Catalytic Converter (CCC)
5. Front Pipe Assy.
6. Flex Bellow
7. Mounting Hanger
8. Muffler Assy
9.
Tail Pipe
