ZEST/BOLT

1135 / 1232

ELECTRICAL
101

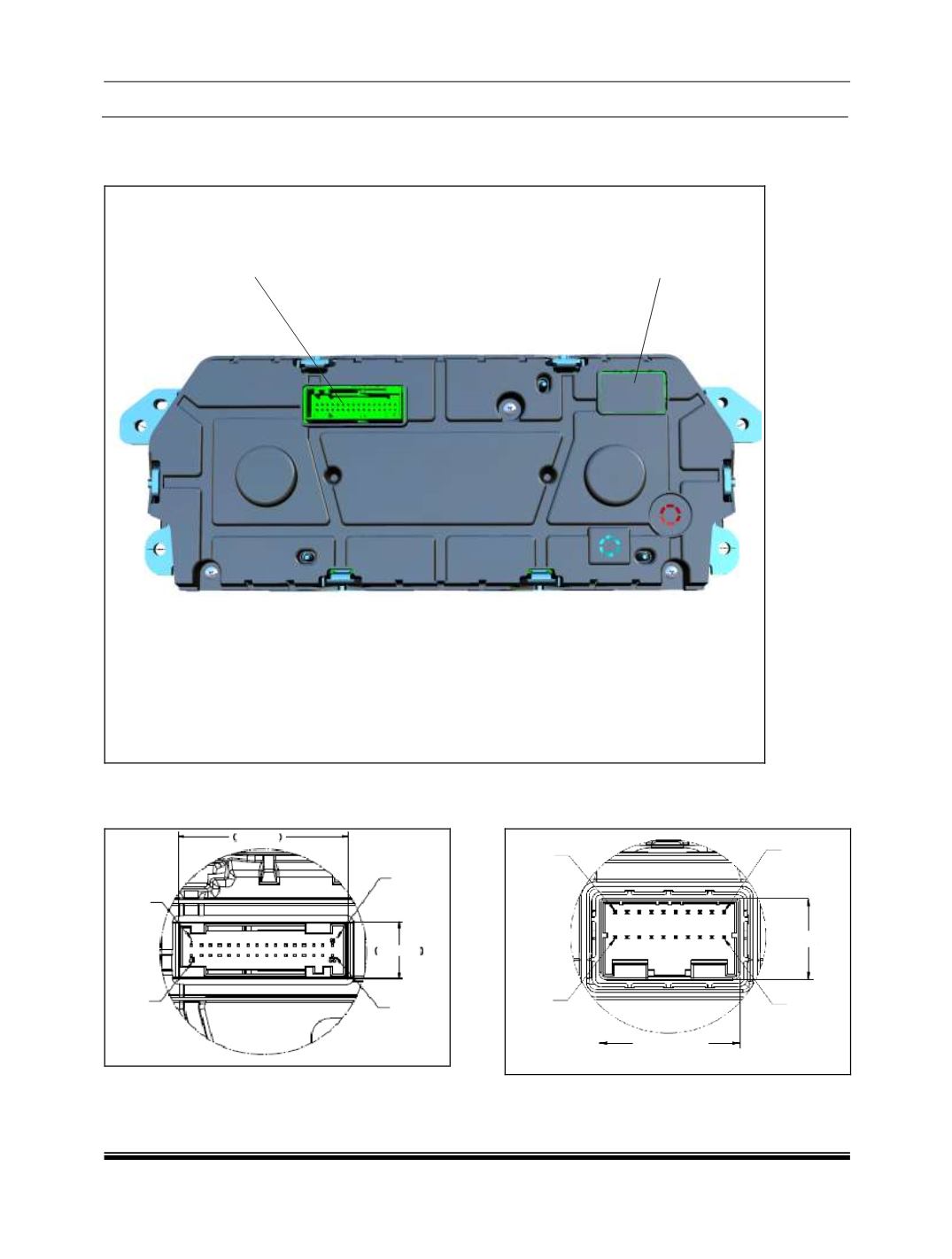

12.24.4 CONNECTOR DETAILS:
CLUSTER REAR SIDE IMAGE
32-PIN 20-PIN
MAIN CONNECTOR IMAGE
 32-PIN
PIN 1
PIN 17
PIN 16
PIN 32
46.2
15.6
 20-PIN
PIN 20
PIN 10
PIN 11
PIN 1
( 29.1 )
( 16.9 )
