AIR CONDITIONING
44

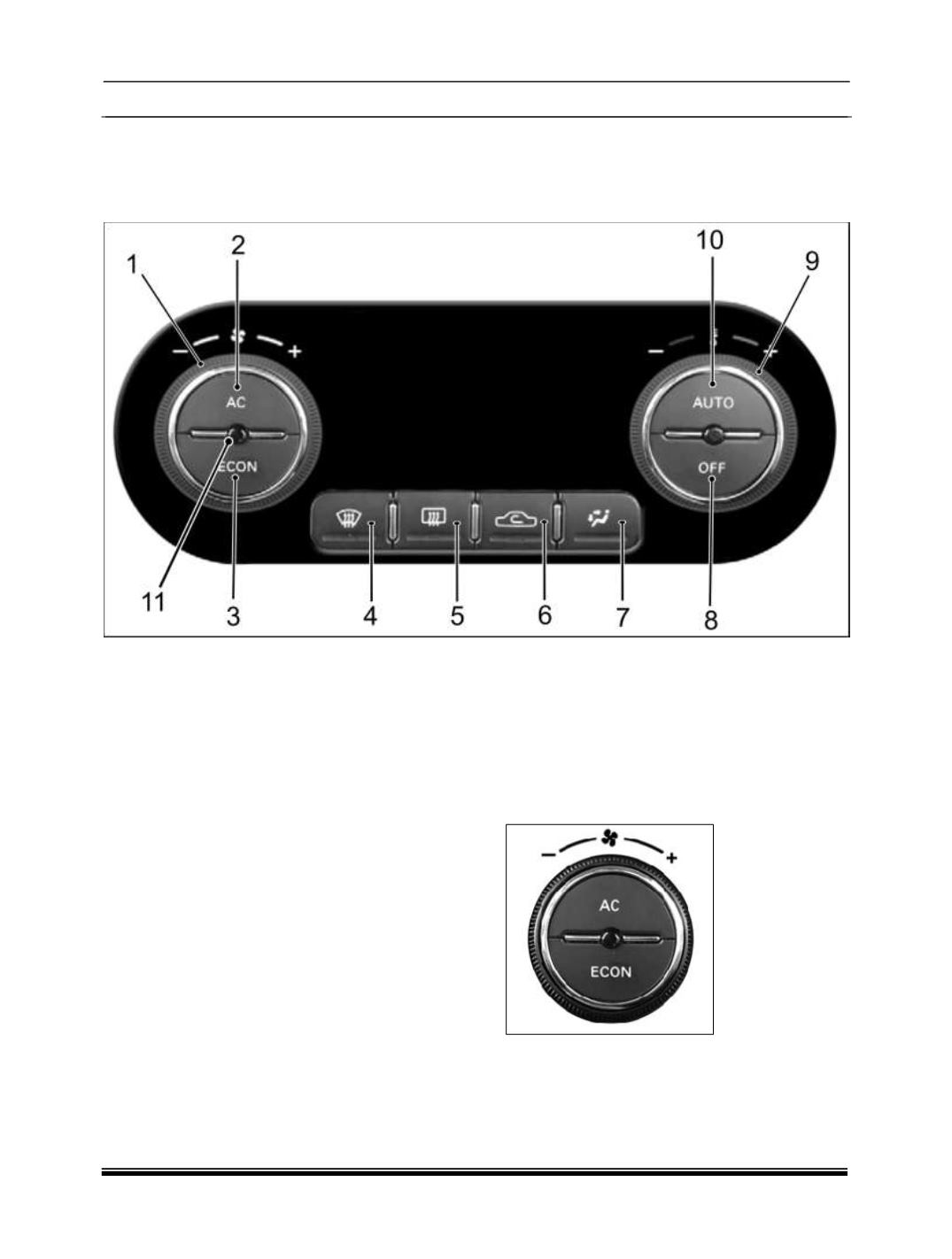

11.18.6 FATC control Panel
The climate control system is managed automatically by an electronic control unit known as the control
panel which has a built in algorithm to maintain the CCM settings, conditions set by the user. The layout of
the knobs and pushbuttons on the control panel are as below.
FATC Controls
1. Blower Speed Control Knob
2. AC Compressor ON/OFF Button
3. ECON (Economy Mode) Button
4. Windshield Defrost Button
5. Rear Defogger / Demister Button
FATC:-
FULLY
AUTOMATIC
TEMPERATURE CONTROL:
GENERAL DESCRIPTION:
FATC system controls the in-cabin Temperature
of the vehicle automatically and provides
maximum passenger convenience regardless of
outside weather conditions.
CAUTION:
If the display flashes ‘ERR’ in periodic pattern
(Display will show ‘ERR’ for 5 sec. and set
temperature for 30 sec.),It indicates FATC
malfunctioning. Switch over to manual mode and
contact
TATA MOTORS
authorized service
station.
6 Air Recirculation Button
7 Air Flow Mode Button
8. AC Blower OFF Button
9. Temperature Control Knob
10
.
Auto Mode
11. Incab Sensor
1. BLOWER SPEED CONTROL KNOB :
A. Rotate the knob clockwise to increase the
blower speed up to MAX 7 speed, where as
anticlockwise would reduce the speed up to
‘SPEED 1
B. In ‘AUTO’ mode, the FATC system will
regulate the blower speed automatically.
