TRANSAXLE TA6300 AMT
16
SR.
NO.
DESCRIPTION
1
HOUSING;REAR-HALF AMT
2
HOUSING;FRONT-HALF AMT
3
NEEDLE CAGE (3RD GEAR I/S)
4
NEEDLE CAGE (1ST GEAR L/S)
5
BUSH 5TH GEAR INPUT SHAFT
6
DEEP GROOVE BALL BRG
7
BUSH 6TH GEAR I/P SHAFT
8
CLAMPING SCREW M20 X 1.5
9
COVER REAR HALF
10
DEEP GROOVE BALL BEARING (L/S)
11
CLAMPING SCREW M18 X 1.5 LH
12
LAYSHAFT
13
SNAP RING
14
OIL SEAL (DRIVE SHAFT)
SR
NO
COMPONENT DESCRIPTION
15
COLLARED SCREW
16
BEARING AND SENSORE WHEEL
17
SHIM;DIFFERENTAIL BRG
18
SUB ASSY. DIFFRENTIAL
19
OIL SEAL DRIVESHAFT
20
SENSING WHEEL
CONTACTLESS(SPEEDO)
21
TAPER ROLLER BEARING
22
OIL FEEDER;LAYSHAFT
23
OIL RING
24
CYL.ROLLER BRG (L/S FRONT END)
25
INPUT SHAFT
26
OIL SEAL (INPUT SHAFT)
27
CYLINDRICAL ROLLER BRG

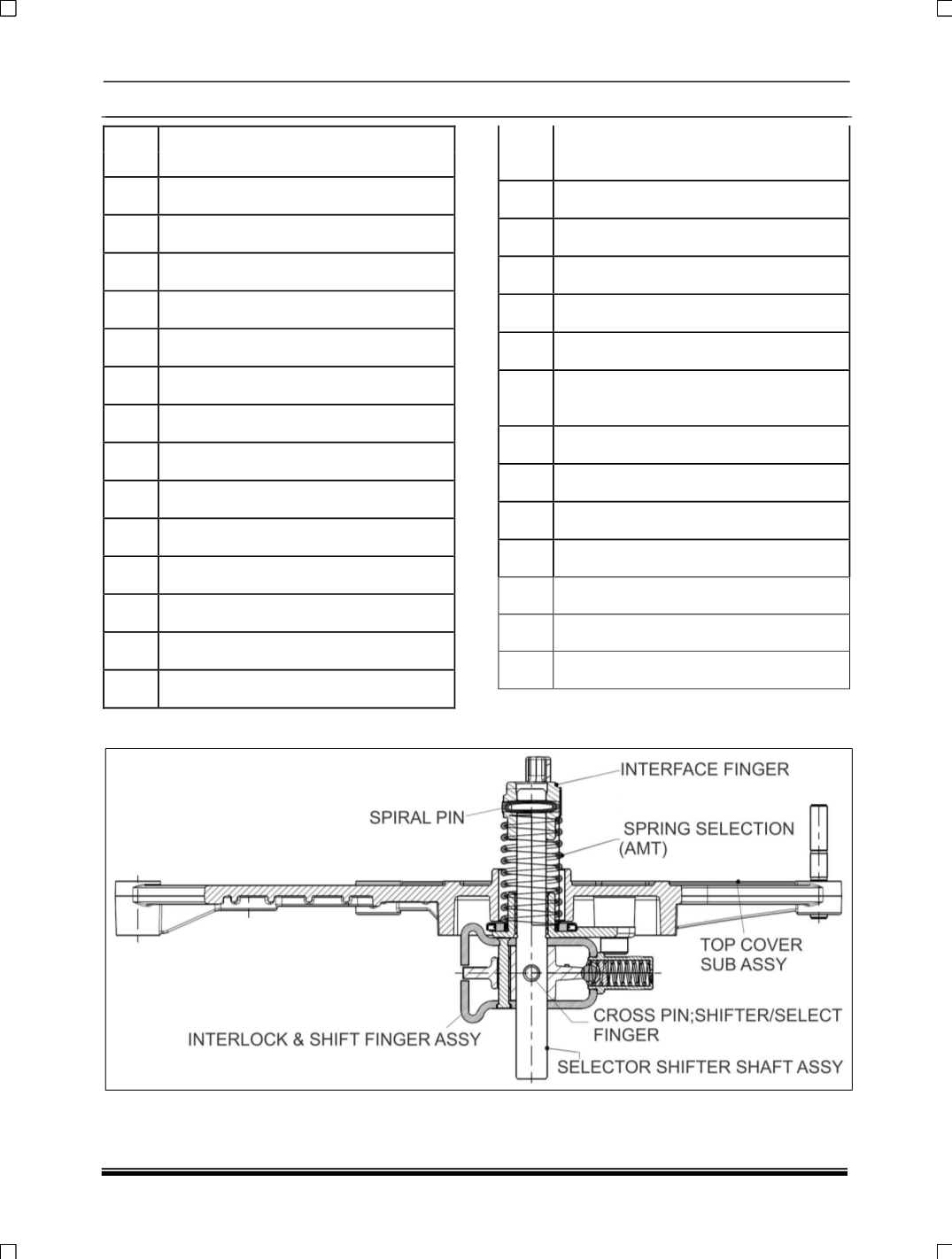

CUT SECTION OF TOP COVER ASSEMBLY:
