1.5L REVOTORQ ENGINE

166

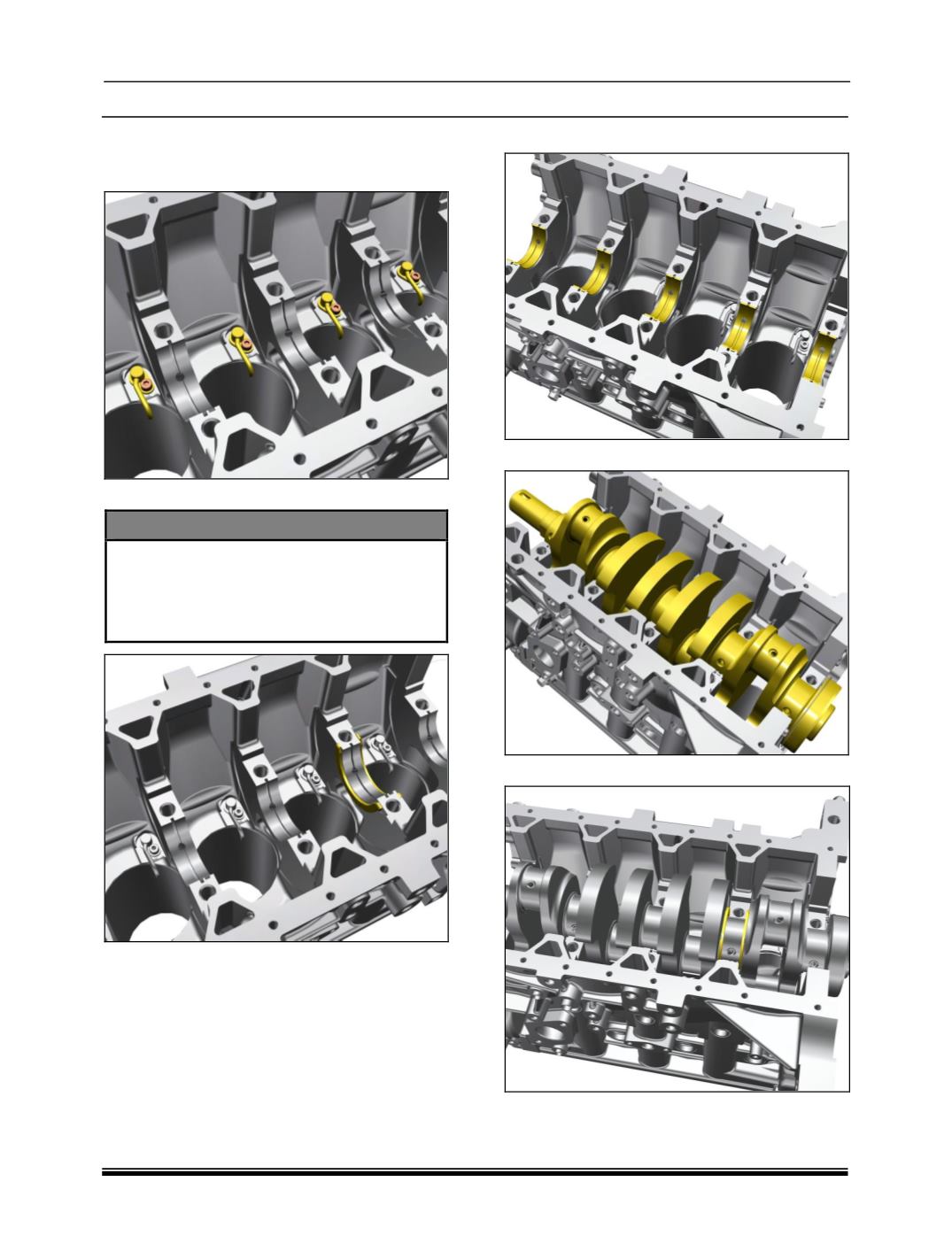

iii. FITMENT OF CYLINDER BLOCK SUB-

ASSEMBLIES

1. Install the piston cooling nozzles.

2. Install thrust washer upper half.

NOTE



Ensure that upper thrust washer notch

should be perfectly aligned on cylinder

block groove and vertical grooves on the

thrust washer should be facing towards

crankshaft side.

3. Install all the upper main bearing half shell.

4.

Install the Crankshaft into the cylinder block.

5.

Install the thrust washer lower half shell.
