1.5L REVOTORQ ENGINE
111

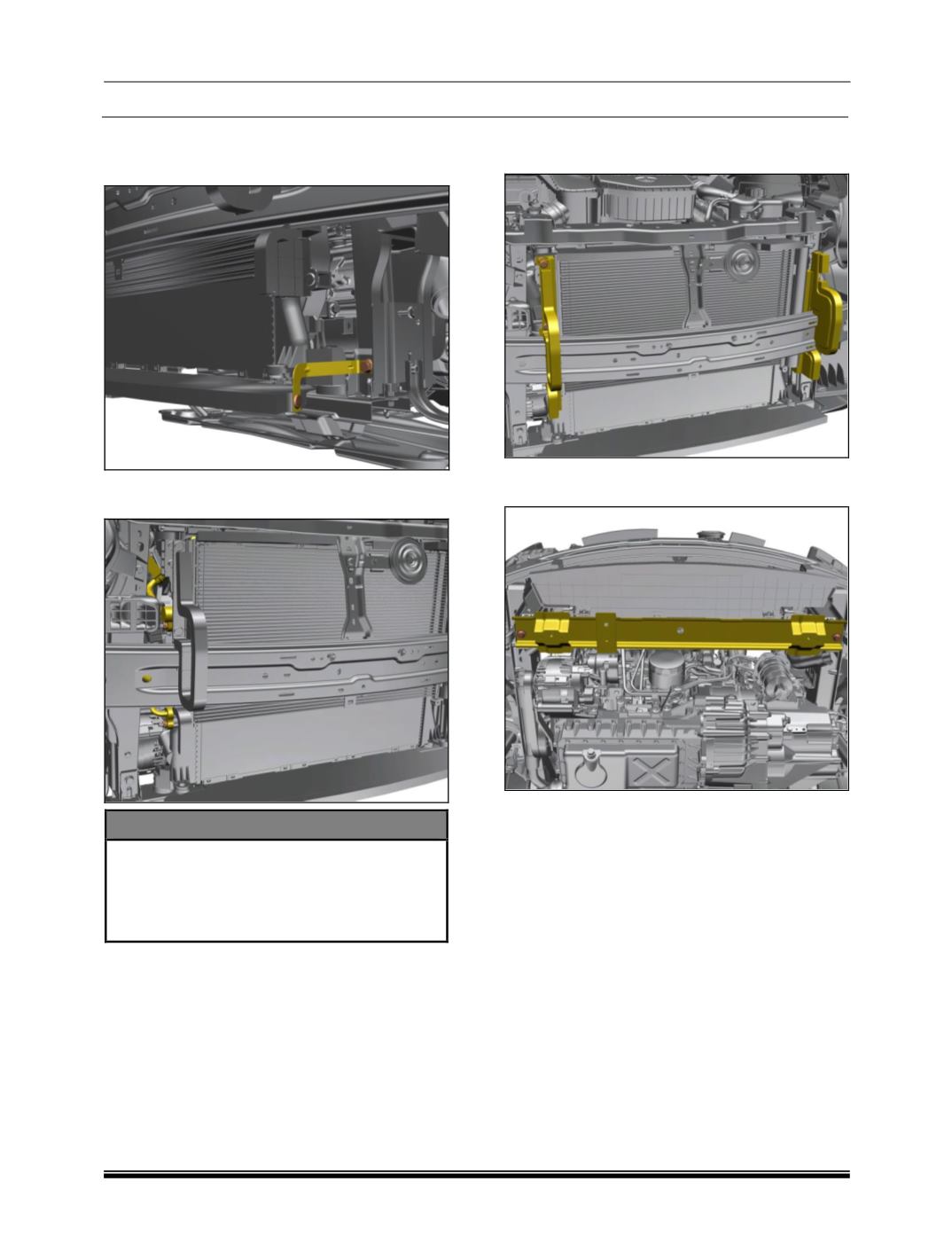

8. Remove the mounting fasteners of the bottom
seal support bracket
(LH side illustrated follow
procedure similarly for RH side)
9. Remove the mounting bolts and disconnect
the refrigerant inlet and return lines.
CAUTION
Never leave the condenser lines open
immediately cover them with caps,
otherwise the desiccant which is in-built in
the condenser may absorb the moisture
from surrounding air and get contaminated
10.Pry out the sealing rivets and remove both the
LH and RH front condenser sealing.
11.Remove the mounting bolts of the bottom
member of radiator support.
12.Tilt the radiator inwards and slide out the
radiator assembly along with the condenser.
