1.2L REVOTRON ENGINE

184

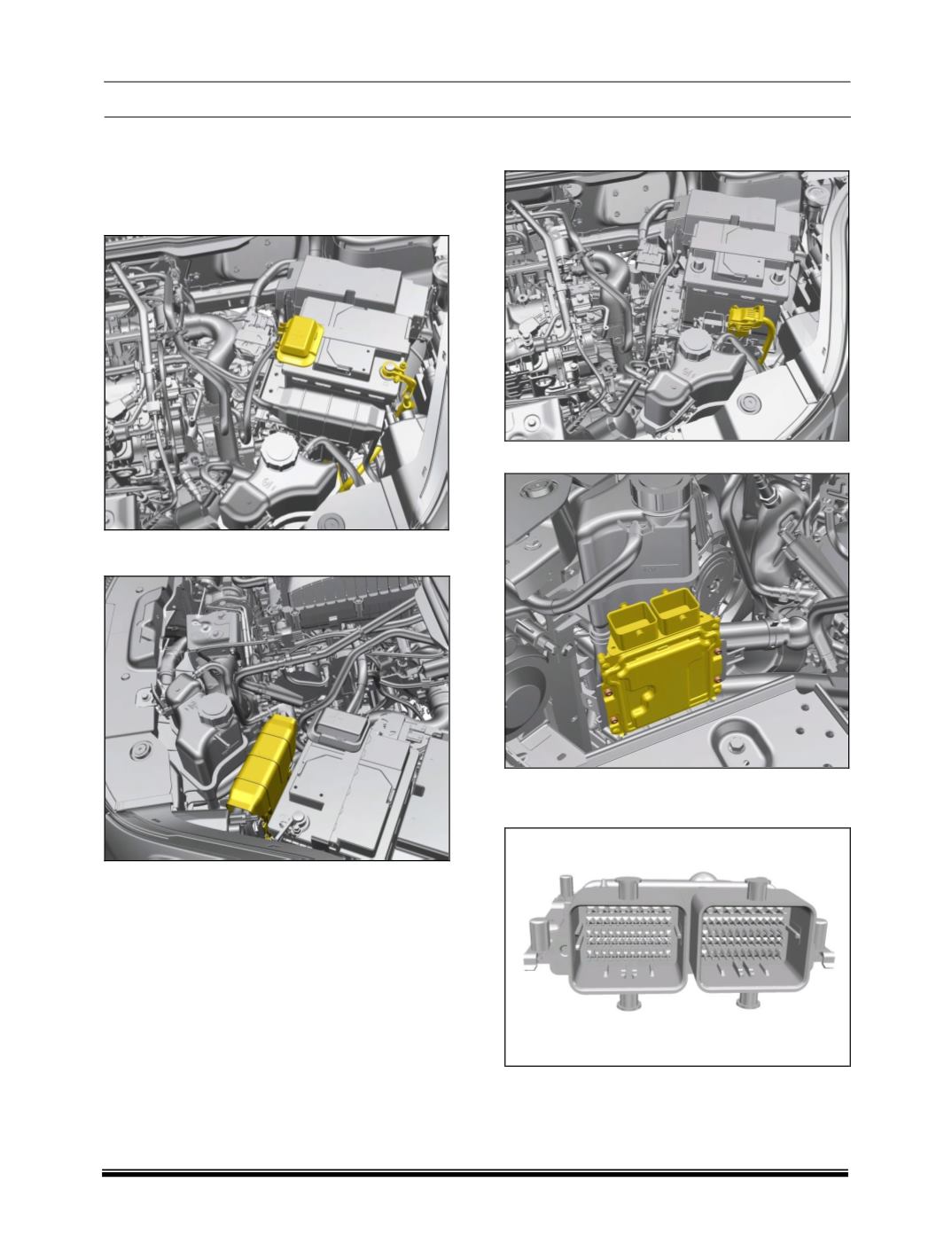

ECU - ON VEHICLE REMOVAL, INSPECTION

AND RE-FITMENT PROCEDURE

REMOVAL

1. Disconnect the negative (-) cable and then

the positive (+) cable from the engine.

2. Remove the protection cap and pull out the

lock of the ECU coupler.

3. Disconnect the electrical connection of the

ECU.

4. Remove the Mounting screws of the ECU.

INSPECTION

Check whether any pins are damaged / bent

.
