1.2L REVOTRON ENGINE
102

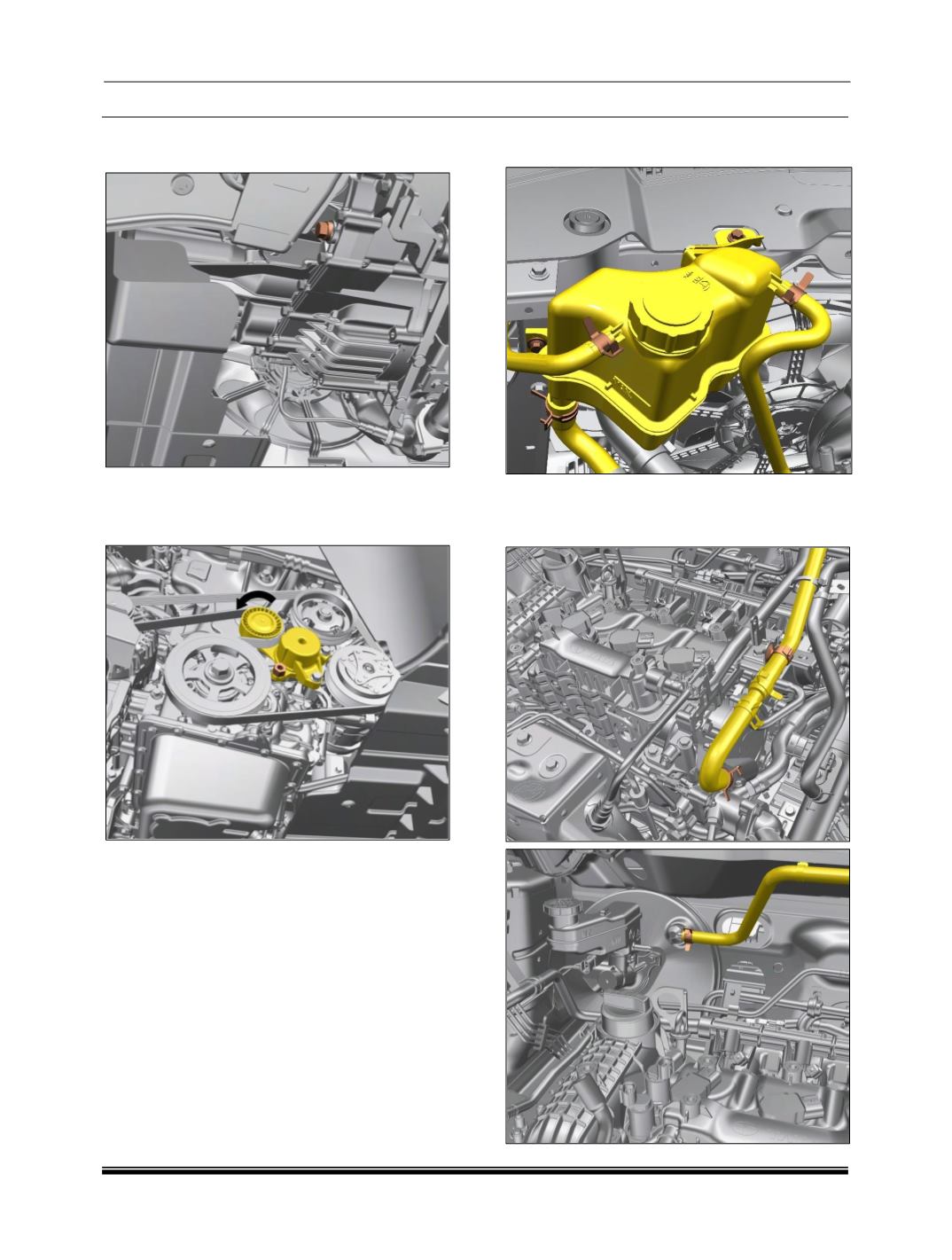

12. Remove the drain bolt from the transaxle.
Drain the transaxle oil from the vehicle.
13. Rotate the tensioner point by using ring
spanner opposite to belt tension and remove
the belt.
14. Recover A/C gas, using recovery unit.
15. Disconnect and remove the auxiliary tank and
hoses from engine.
16. Disconnect and remove vacuum hose
connected between brake booster to vacuum
pump.
