CLOCK SPRING ALIGNMENT PROCEDURE
! CAUTION
If this alignment is not done the clock spring may
get severely damage.
Rotate the clock spring rotor in clockwise
direction till it reaches the maximum limit of
rotation.
Turn the clock spring in anticlockwise direction
for 2.5 rotations from this extreme position.
This will be the straight ahead position of the
clock spring.

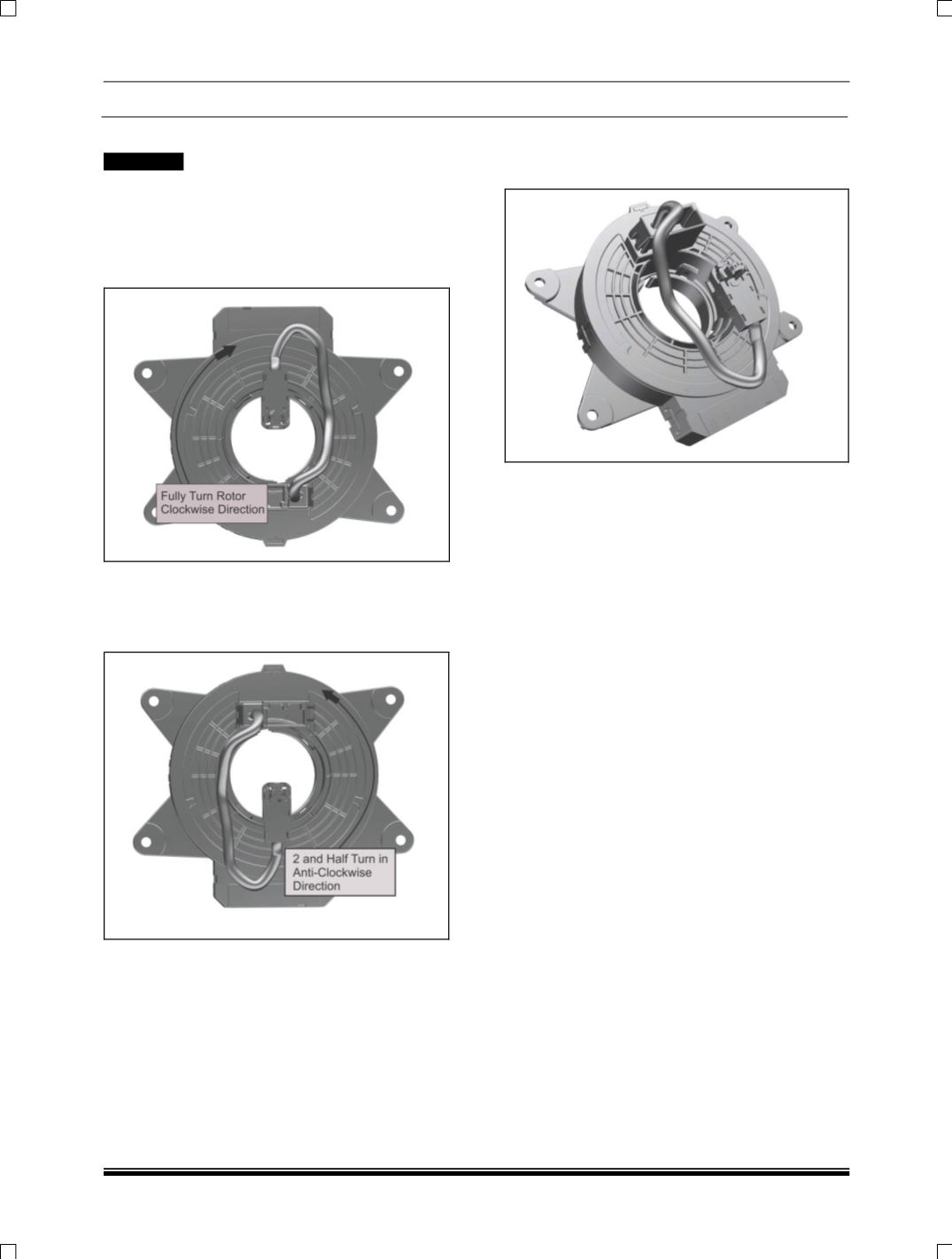

The straight ahead position of the clock spring
can be confirmed by arranging two arrows in
front of each other as shown in figure
Assemble the clock spring in this position.
