5.3 AUTO RELOCK

5.3.1 Description

For added security, when the vehicle is Unlocked and if any of the doors is not opened for a predefined time,

then the vehicle shall get locked after this predefined time elapsed.

Auto Relock feature in a vehicle shall be configurable during service.

5.3.2 Conditional Requirements

Activation –

• RKE unlock is provided &

• If no door is opened for the time period 30 seconds

Exit Condition

Within 30 sec if,

• Ignition Key must be at ON position

• Any door is opened

• Key is inserted

5.3.3 Operating Voltage Range

DESCRIPTION

REQUIREMENT

VOLTAGE

Auto Relock.

Normal operating voltage

12V

Min & Max operating voltage range

9V-16V

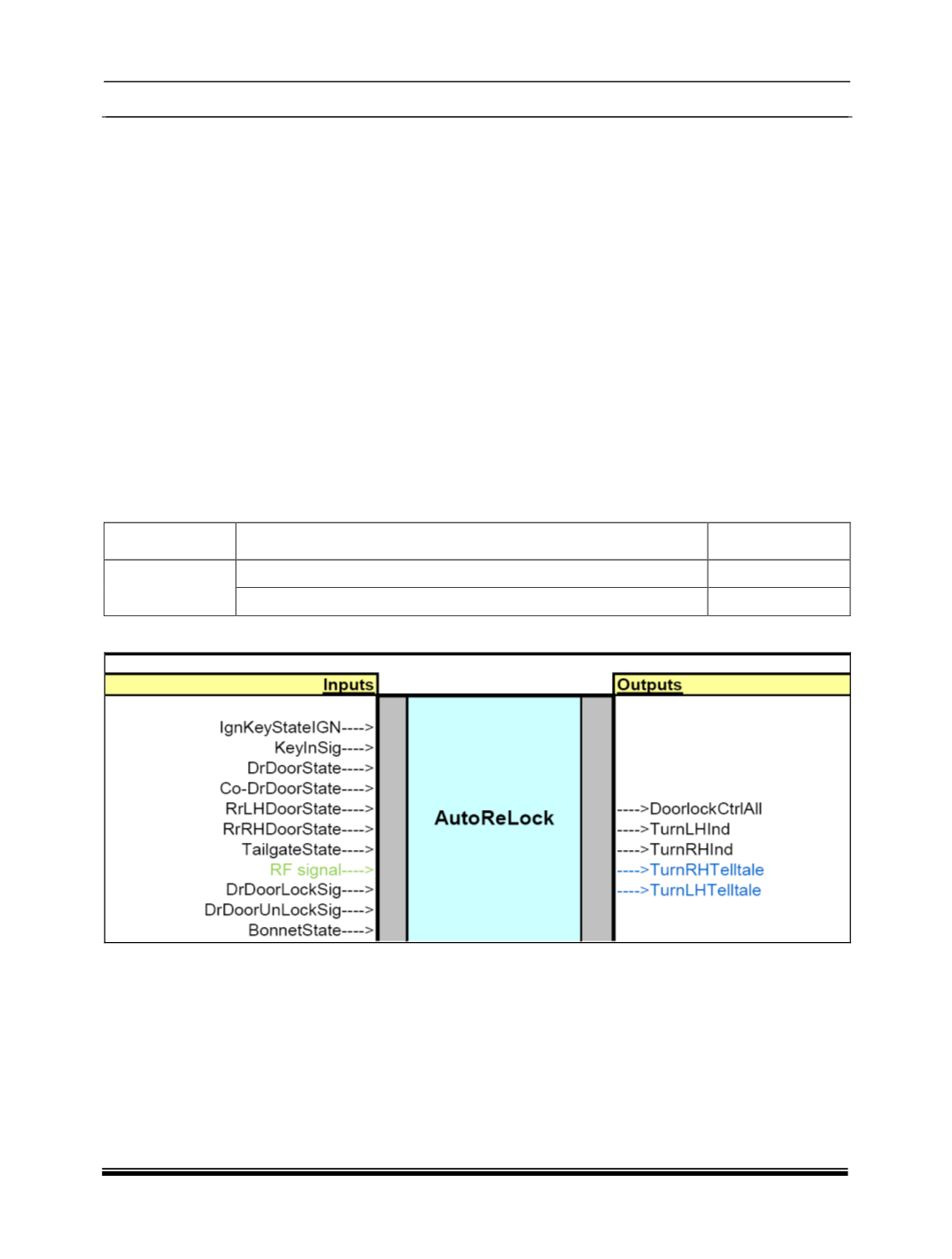

5.3.4 Inputs & Outputs
