ELECTRICAL
36

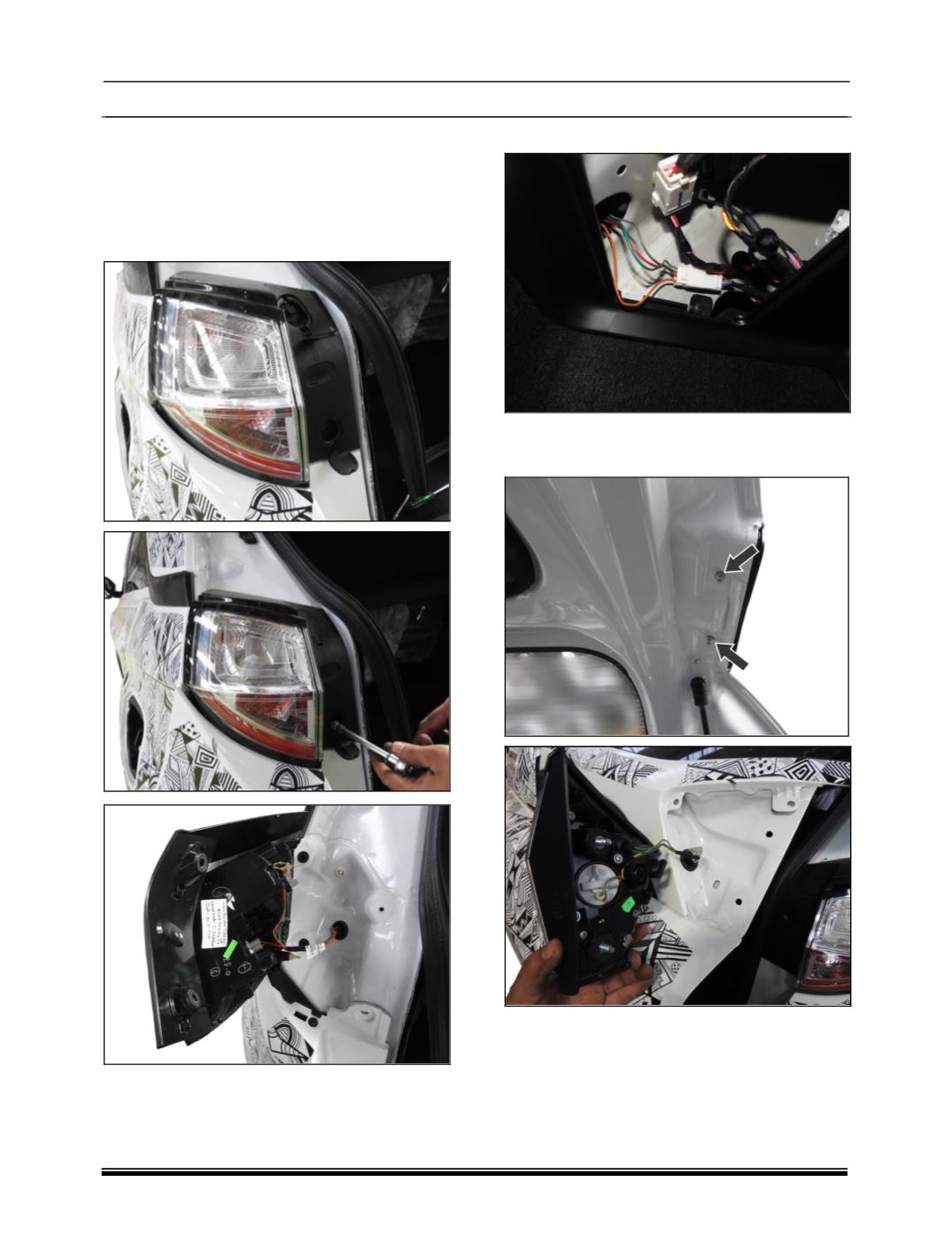

REMOVAL AND REFITMENT OF TAIL LAMP
REMOVAL
Open
1. Pull out cap of tail lamp
2. Remove two bolt of tail lamp.
3. Remove the electrical connections.
4. Open tail gate
5. Remove two nuts on tail gate
REFITMENT:
1. Connect the electrical connection
2. Aline the lamp with its locating catcher.
3. Tighten mounting the nut.
