BRAKES
50

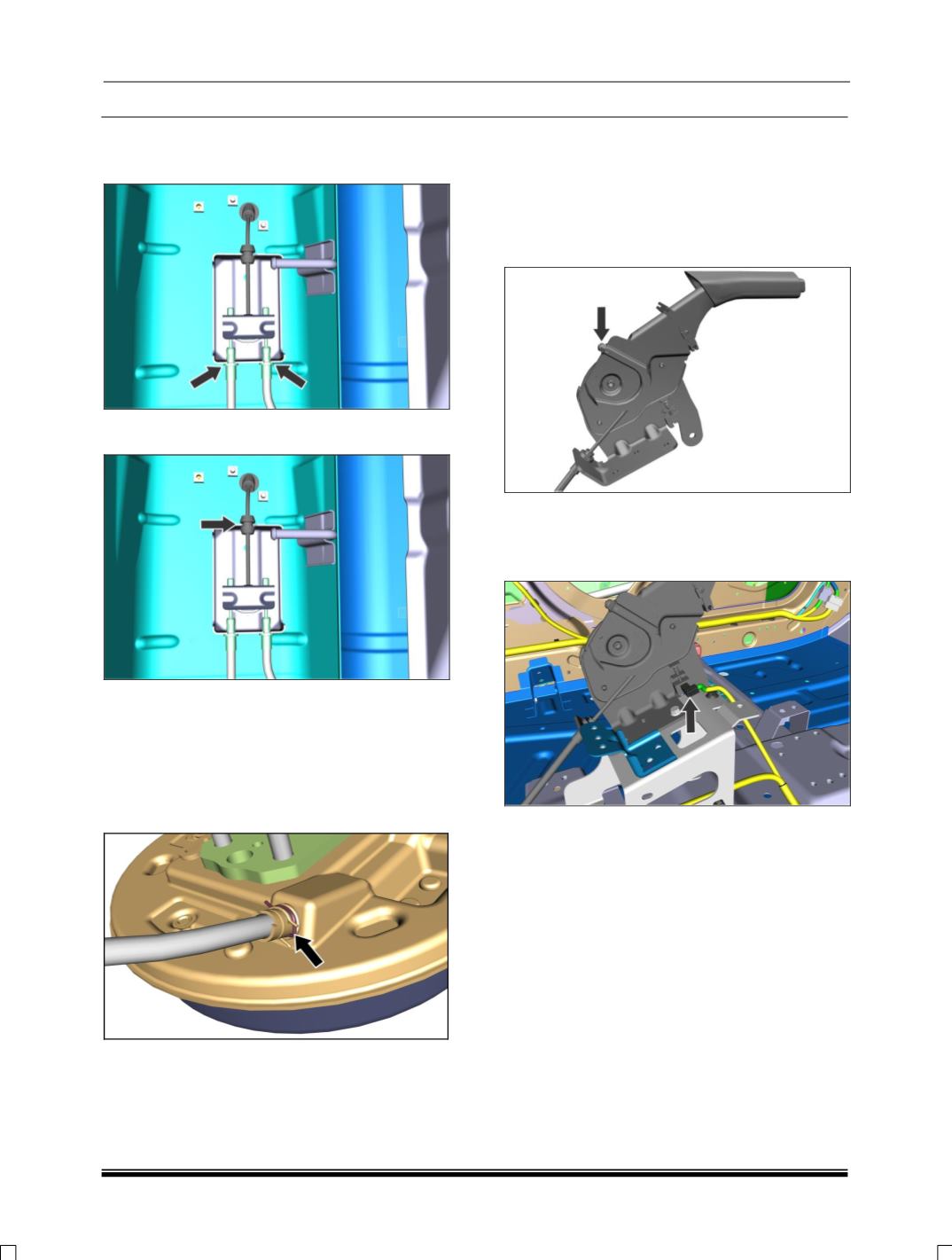

10. Remove the parking brake cable that is snap
fitted to the cable-mounting bracket located
underbody.
11.Remove the Primary cable of the Parking
Brake Lever from equalizer located underbody.
12.Now disconnect all the parking brake cable
clamps from the body mountings.
INSTALLATION OF CABLE
Carry out the above steps in appropriate
sequence for its fitment.
NOTE:
1. Fit the cable to the brake shoe lever.
2.
Fit the parking brake cable clip to the brake
back plate securely
.
INSTALLATION OF PARKING BRAKE LEVER
1. Proceed in the reverse order of removal.
2. Tighten the mounting bolts of the parking
brake lever to the torque specified.
3. Adjust the parking brake cable slackness as
per the procedure given.
4. Reconnect the electrical connections to the
parking brake switch assembly and confirm
that the parking brake lamp becomes “ON”
when parking brake lever is at first notch.
