SUSPENSION
23
1.8. EXPLODED VIEWS REAR SUSPENSION

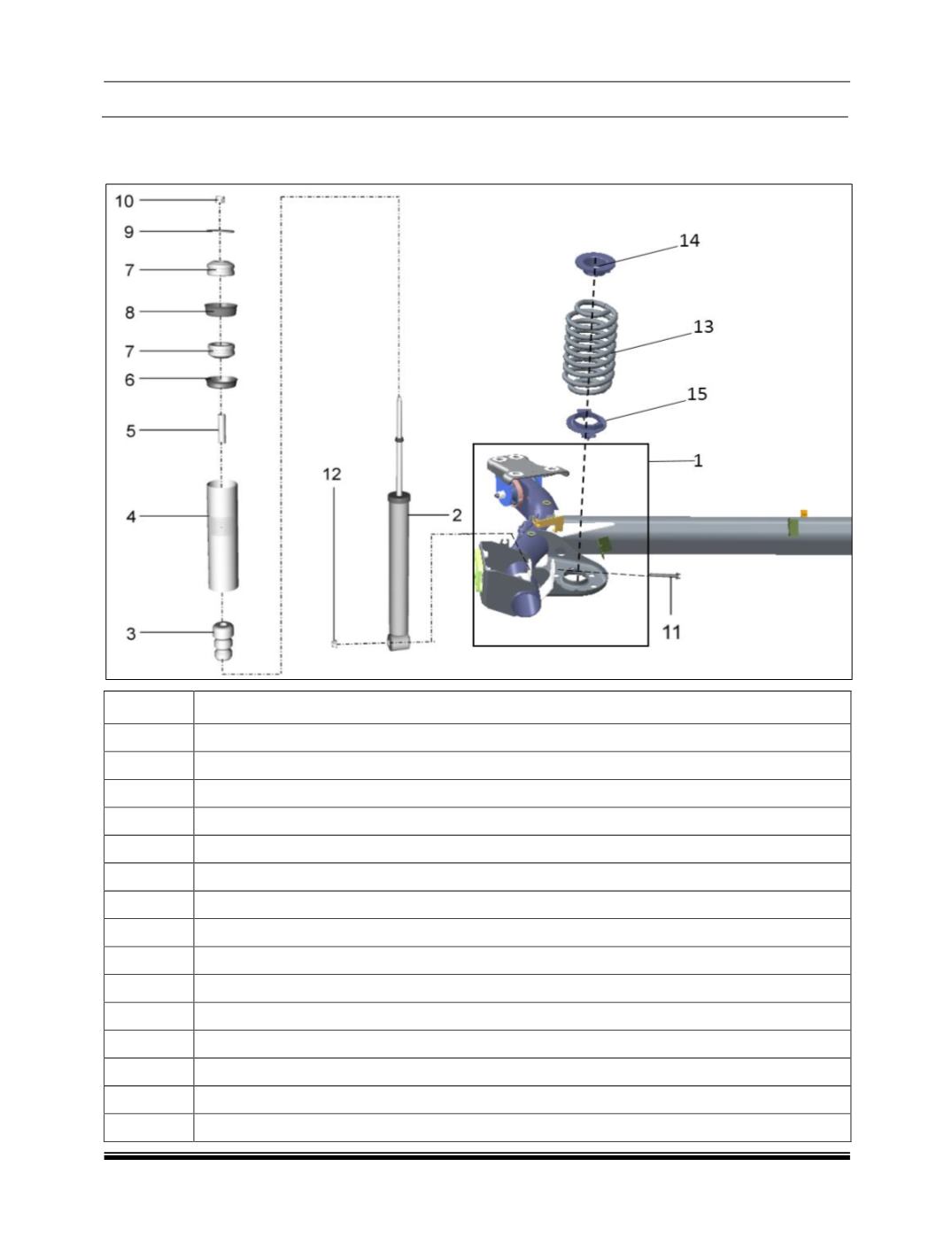

A) REAR SHOCK ABSORBER AND SPRING EXPLODED VIEW
SR. NO.
DESCRIPTION
01
ASSY TWIST BEAM WELDED STRUCTURE
02
ASSY DAMPER REAR SUSPENSION
03
BUMP STOPPER REAR SUSPENSION
04
ASSY DUST COVER REAR SHOCK ABSORBER
05
SLEEVE REAR SHOCK ABSORBER
06
CUP REAR SHOCK ABSORBER
07
TOP RUBBER REAR SHOCK ABSORBER
08
CUP REAR SUSPENSION TOWER
09
WASHER REAR SHOCK ABSORBER
10
NYLOC NUT M10
11
HEX FL BOLT
12
HEX FL NUT AM10X1.25
13
SPRING REAR SUSPENSION
14
SPRING SEAT TOP RUBBER REAR SUSPENSION
15
SPRING SEAT BOTTOM RUBBER (REAR SUSPENSION)
