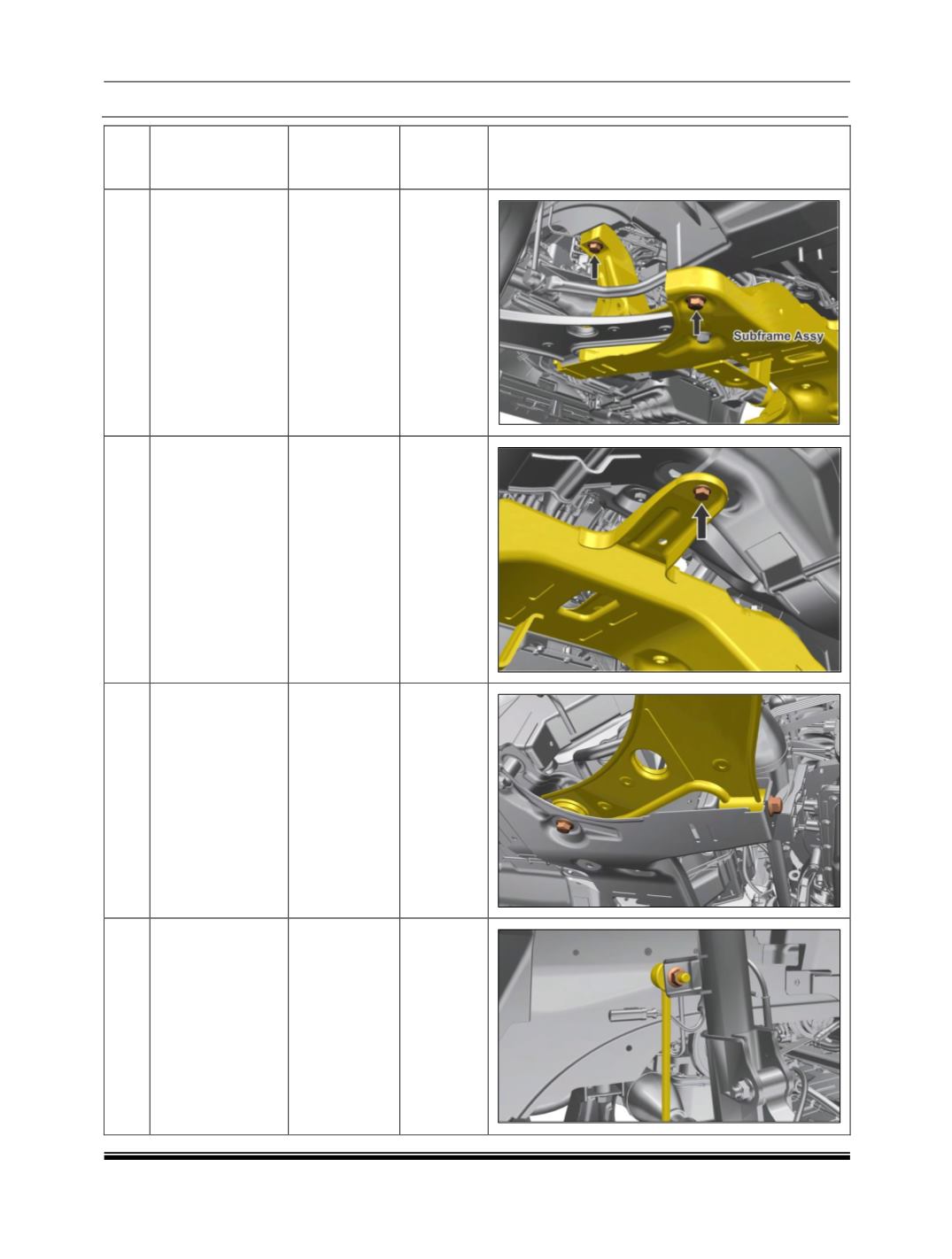

SUSPENSION

7

SR.

NO.

DESCRIPTION

FASTNER

TYPE

TORQUE

VALUE

(Kg-m)

LOCATION

4

Sub frame

mounting bolts(at

4 corners)

M14x1.25

19

5

Sub frame

mounting bolts(at

center)

HEX FL

SCREW

M8X20

3

6

Lower link to sub

frame mounting

M14X1.25

17

7

Stab link

mounting on strut

S/LOCK H/FL

NUT M10

6
