TRANSAXLE TA6300
47
1.13.
INSTRUCTION FOR ASSEMBLY /
DISASSEMBLY
OF
CABLE
ON
TRANSAXLE:

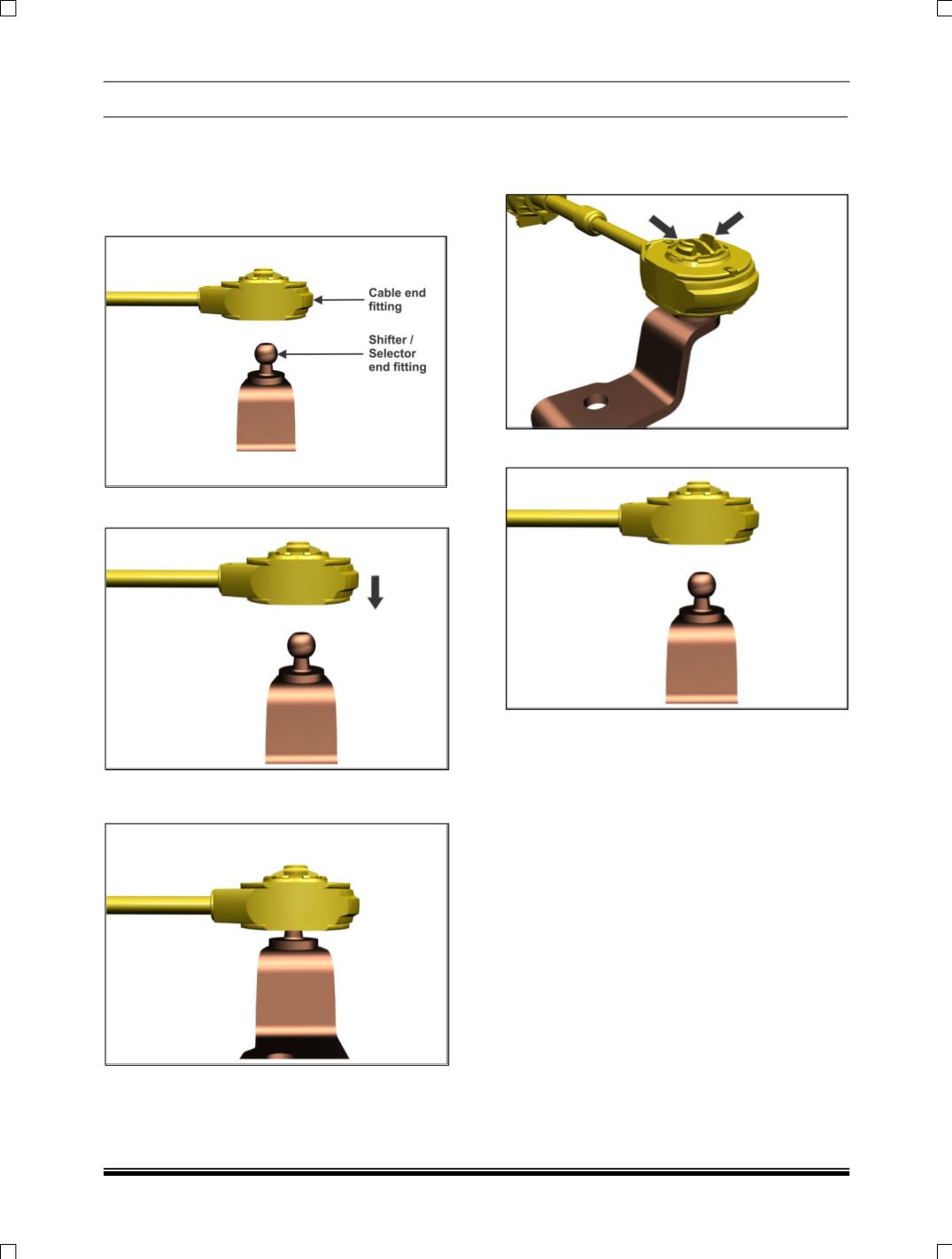

ASSEMBLY INSTRUCTIONS:
1. Ready to Assemble.
2. Push the end fitting as shown.
3. Final assembled condition of cable end and
selector/shifter end.
DISASSEMBLY INSTRUCTIONS:
1. To disassemble, push/press the cable end
fittings with finger.
2. Final disassembled condition.
WARNING:
Pulling the cable end fitting without unlocking the
locking bush would bend the rod and damage the
cable assembly.
