TRANSAXLE TA6300

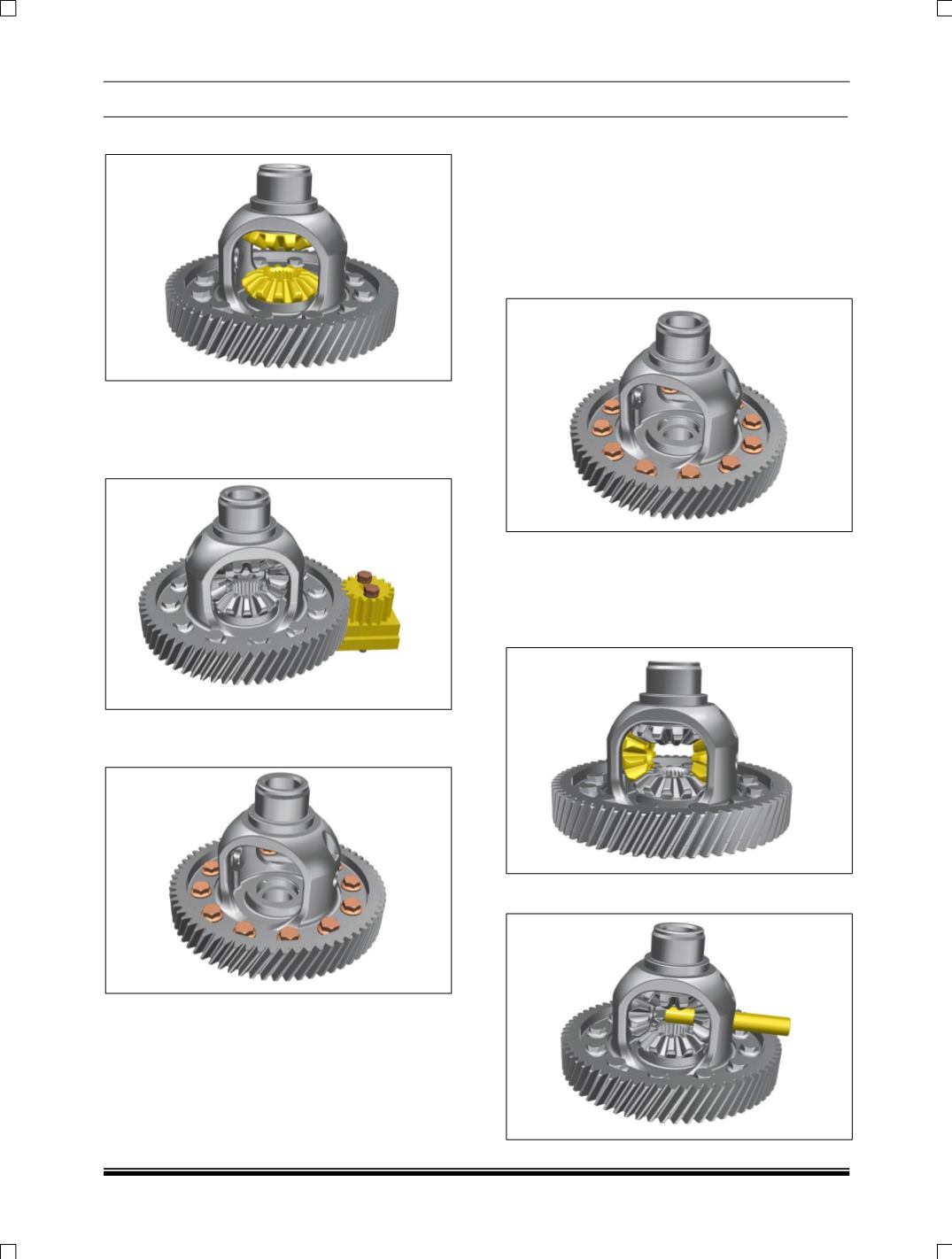

8. Remove side bevel gears with washers.

9. Hold fixtures for gear on differential assembly

part no. 2702 5890 2609 in soft jaw vice.

10. Mount differential housing on fixture part no.

2702 5890 2609 and lock it.

11. Unscrew and remove the collared bolts (10

Nos.).

DIFFERENTIAL

ASSEMBLY:

1. Hold fixture for gear on differential casing on

soft jaw vice.

2. Mount differential housing on fixture part no.

2702 5890 2609 and lock it.

3. Place gear final drive on differential housing.

Tighten the collared bolts (12 nos.) to

specified torque of 8 to 9 mkg.

4. Place both the bevel gear on the differential

housing with spacer.

5. Place another set of idler bevel gear on the

already lifted bevel and rotate by 90° to align

the bevel to spider shaft hole.

6. Push the spider into the hole.
