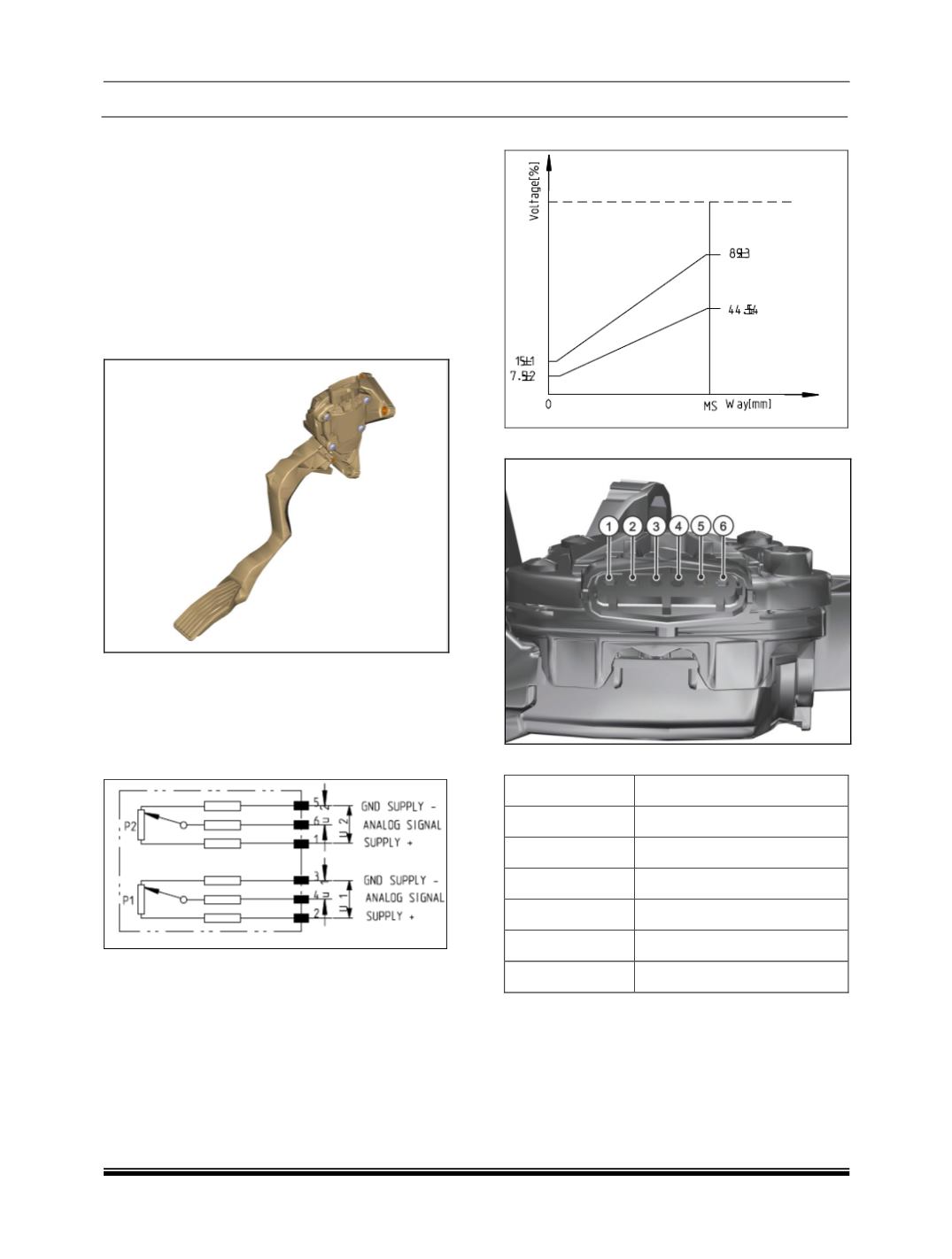

vii. THROTTLE PEDAL SENSOR
This sensor tells the ECU about the position of the
accelerator pedal. This input is used to determine
the torque required to drive the vehicle which in
turn determines the requirement of fuel quantity.
This is a dual potentiometer sensor for the safety
& correct inputs (Driver's request/Throttle position)
to ECU.
Throttle Pedal sensor checking values
1.25K ohm +/- 20% between terminals 1 & 5
0.9K ohm +/- 20% between terminals 2 & 4
Operating Voltage :
5V±10%
Operating Temperature :
-30
0
C to 85
0
C
Storage Temperature :
-40
0
C to 90
0
C
Maximum Load Current :
≤ 10mA
WIRING DIAGRAM
OUTPUT CHARACTERISTIC
CONNECTOR DETAILS
PINOUT DETAILS
Pin No
Description
1
Supply +
2
Supply +
3
GND Supply -
4
Analog Signal
5
GND Supply -
6
Analog Signal
