NEXON

1.5L REVOTORQ ENGINE

180

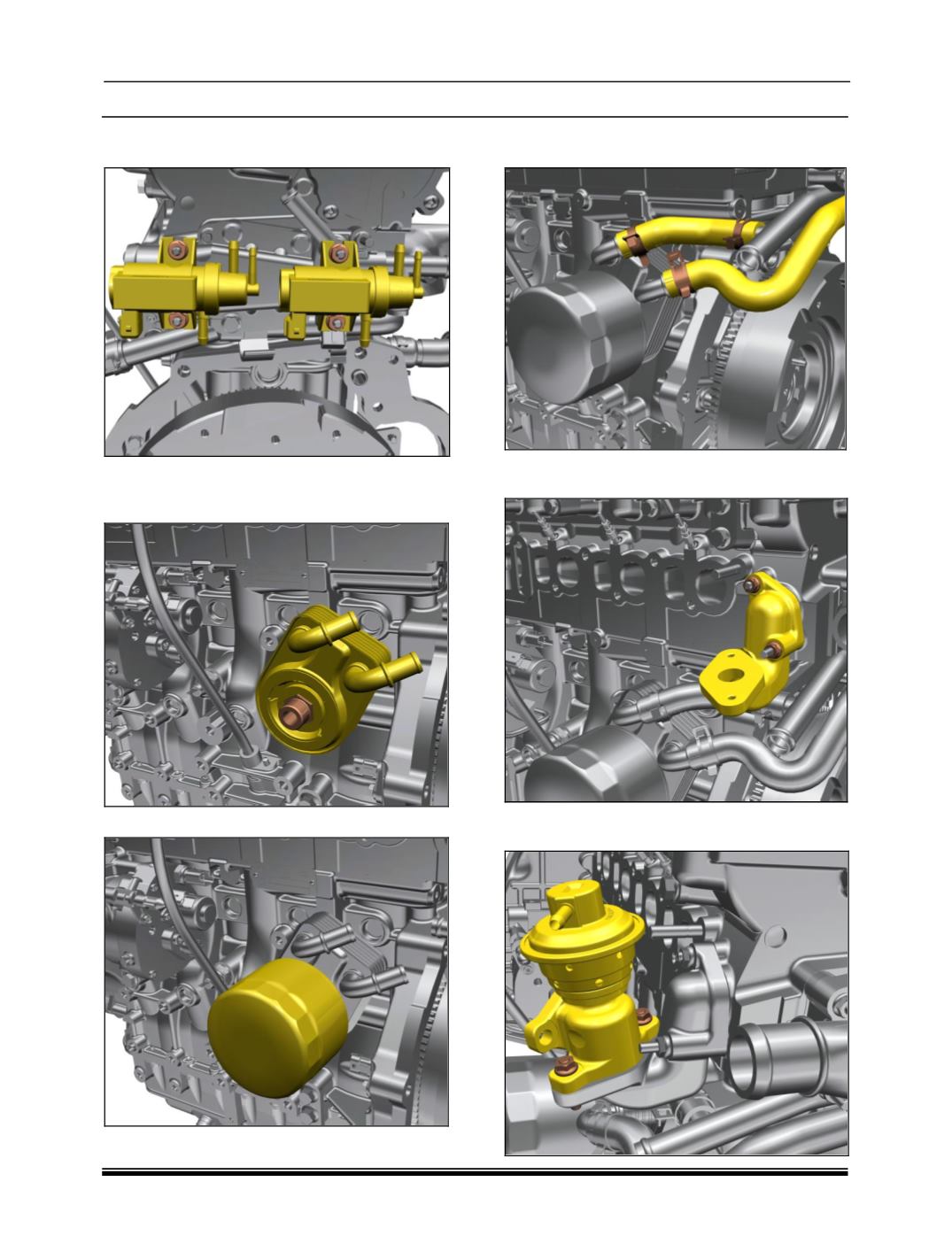

19.Install both the EVRV assemblies on the

bracket using fasteners.

20.Tighten the oil cooler adapter and install the oil

cooler assembly. Tighten the assembly to the

specified torque.

21.Install the oil filter using special tool.

22.Connect the inlet and outlet of the oil cooler

and fit the spring band at the connection.

23.Install the EGR valve elbow. Make sure to use

new gasket when installing.

24.Install the EGR valve using fasteners. Make

sure to use new gasket when installing.
