1.5L REVOTORQ ENGINE
165

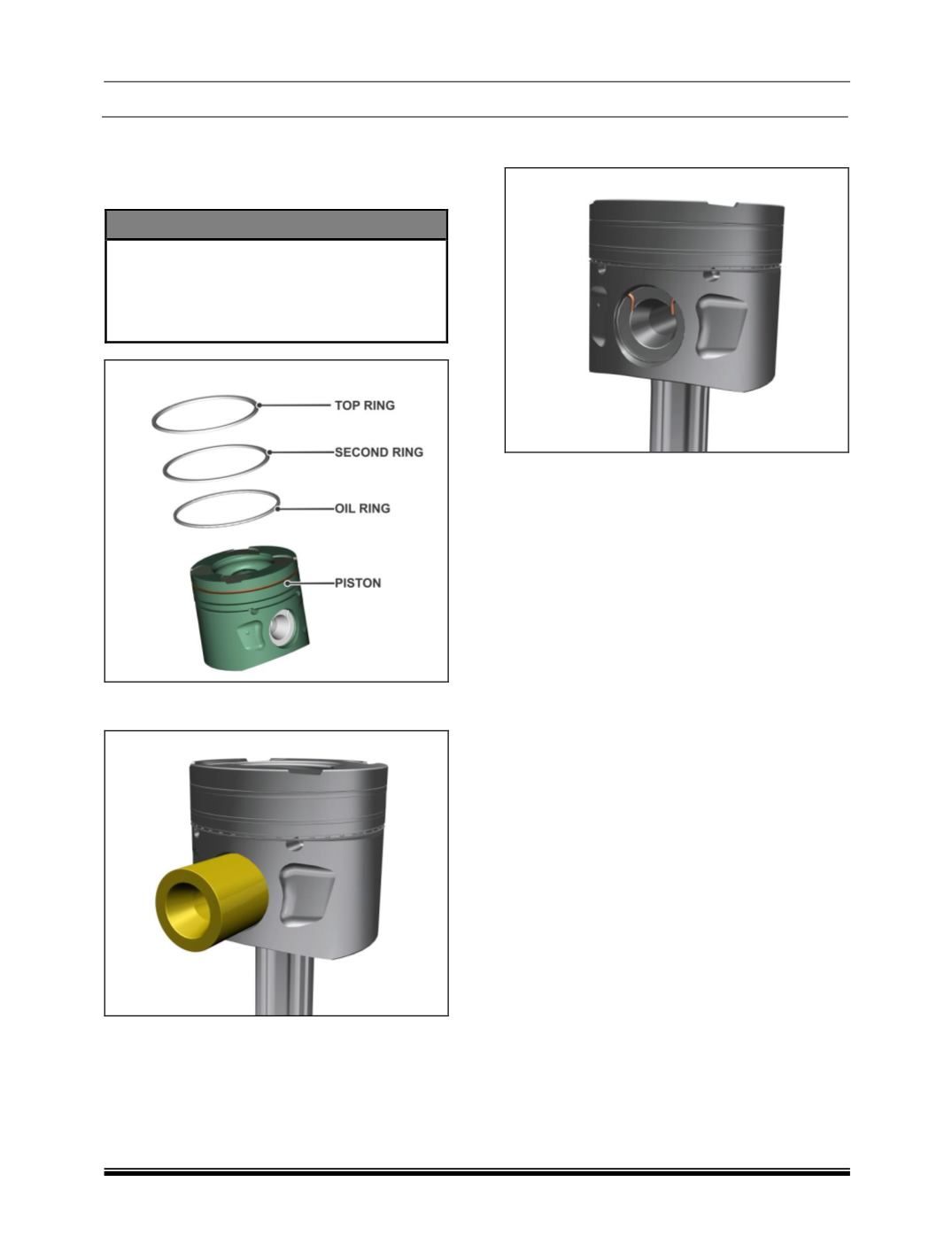

ii. FITMENT OF PISTON AND CONNECTING
ROD SUB-ASSEMBLIES
1. Fit Piston Oil Ring, Piston Second Ring and
Piston Top Ring respectively as shown.
CAUTION
The piston ring gap should not be inline
with each other while assembling on
piston.
Place the piston rings on the piston, such
that the ring gaps are 120
0
apart.
2. Install the Connecting Rod and Insert Piston
Pin.
3. Install Piston Pin Circlip from both side of
Piston Pin.
