1.5L REVOTORQ ENGINE

132

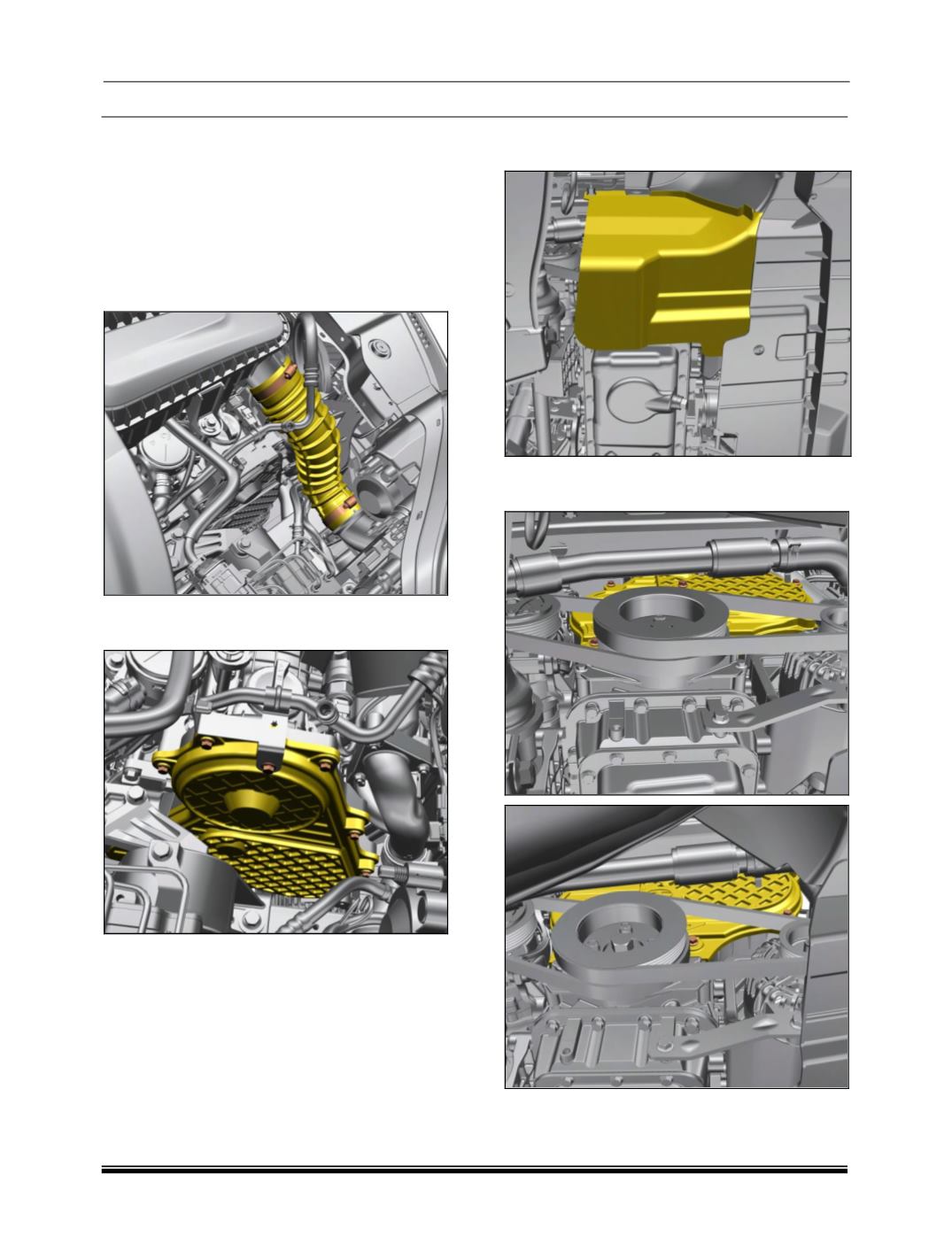

K. HIGH PRESSURE PUMP REMOVAL AND

REFITMENT

REMOVAL

1. Place the vehicle on the two post lift and

engage the parking brake.

2. Open the hood (bonnet).

3. Disconnect the rubber hose connecting the air

filter.

4. Remove the top timing cover mounting bolts

accessible from the bonnet side.

5. Lift the vehicle and remove the RH side front

mud liner.

(For procedure refer body section).

6. Remove the top timing cover mounting bolts

accessible from below the vehicle.
