NEXON

1.5L REVOTORQ ENGINE

INSPECTION

1. Hold the air filter element up to a light

source. Light should be visible through the

element. There should be no holes or tears

in the element.

2. The filter can also be cleaned using low

pressure compressed air.

3. Replace the filter element if torn or light is

not visible through the filter.

INSTALLATION

1. Place the air filter element.

2. For re-assembling the cover, please ensure

that all the hinge lugs are properly assembled

in the slot of the air filter housing body, before

tightening the screws.

iv. FUEL FILTER REPLACEMENT

WARNING



If diesel leakage is detected, do not start

the vehicle or allow an open flame or spark

near the vehicle. Have the fuel leak

repaired immediately.



The fuel system is under pressure. Relieve

fuel system pressure before replacing the

filter.

DESCRIPTION

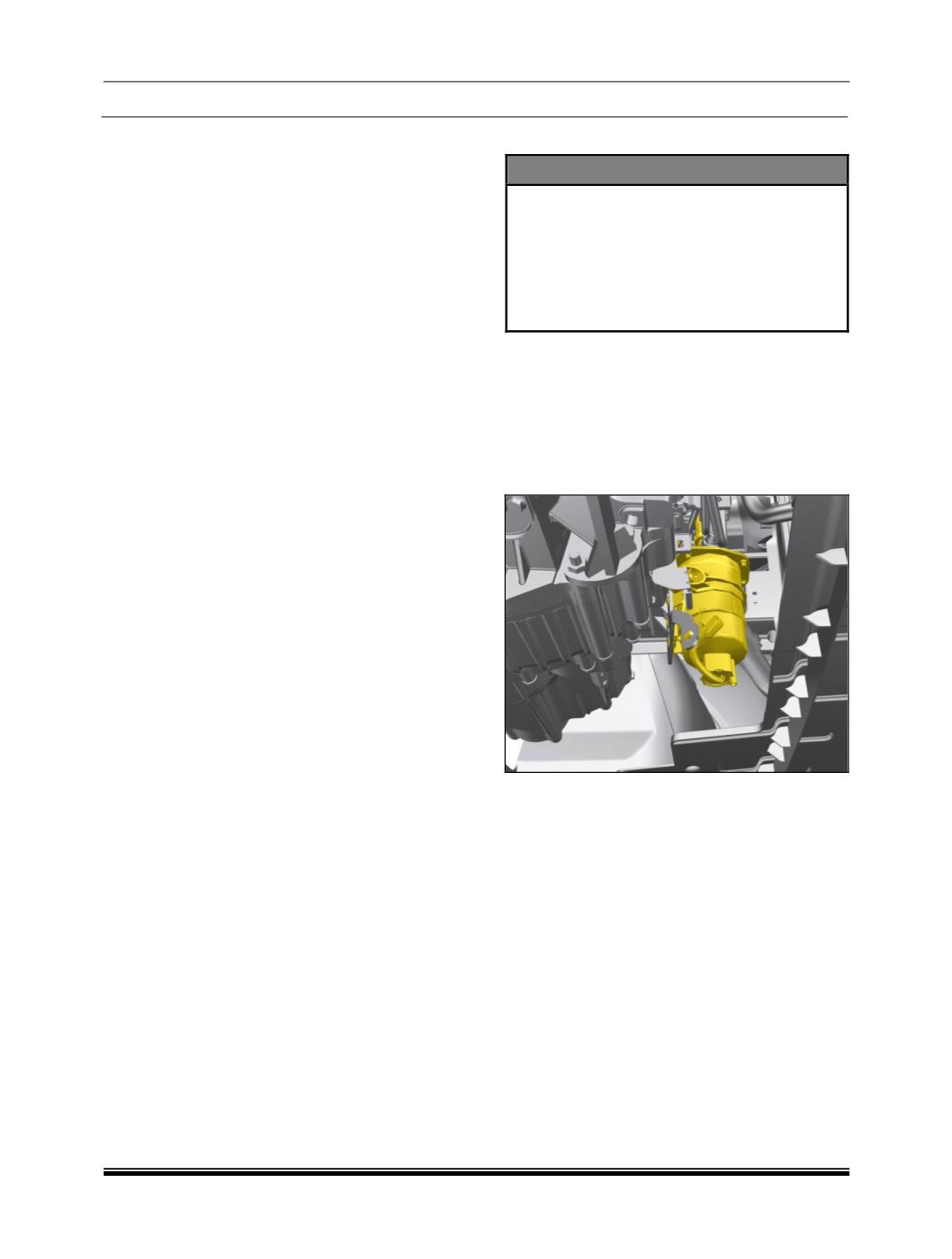

The fuel filter is mounted on transaxle on the front

side in the vehicle. A band clamp secures the fuel

filter in place. Replace the fuel filter as per

service schedule. When the vehicle is operated in

adverse conditions or where fuel quality is

questionable, more frequent replacement may be

necessary.

REMOVAL

1. Relieve fuel system pressure by removing the

power supply to the system fuel pump and

cranking the engine.

2. Disconnect the negative (-) battery cable.

3. Remove the fuel line connections (Quick fit

Connectors) to the fuel filter.
