NEXON

1.2L REVOTRON ENGINE

171

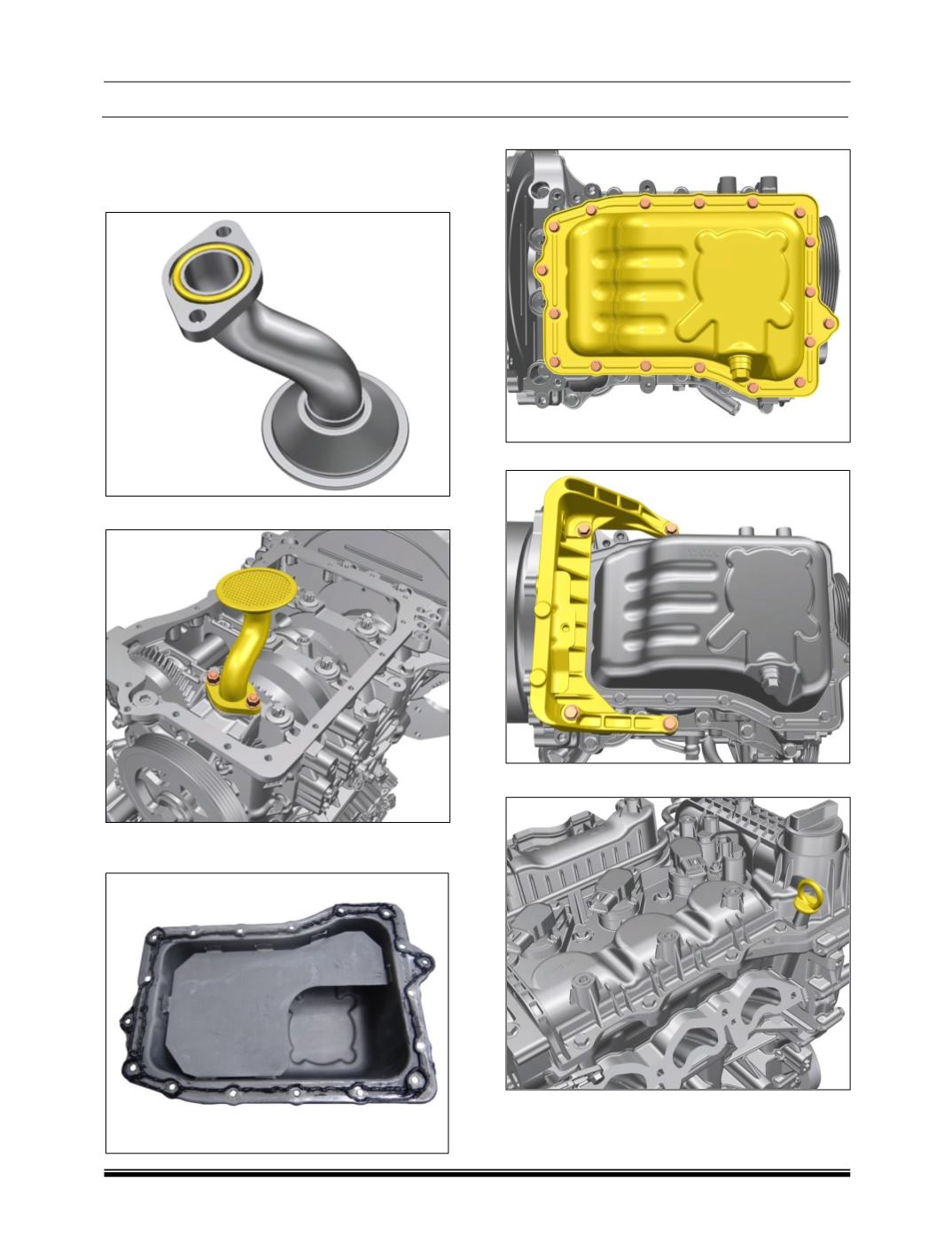

VIII. Assembly of Oil Sump

1. Rotate the engine at 180

for fitment of oil

sump.

2. Fit the O-ring inside the oil strainer assembly.

3. Refit the Lube Oil Strainer along with O-Ring.

4. Spread the liquid sealant on oil sump without

spilling the sealant in holes.

5. Fit the oil sump and tighten its mounting bolts.

6. Install the stiffener bracket.

7. Rotate the engine and fit the oil dip stick.

8. Refill the engine oil.
