NEXON

SUPPLEMENTARY RESTRAINT SYSTEM (SRS)

B. PASSENGER AIRBAG (PAB)

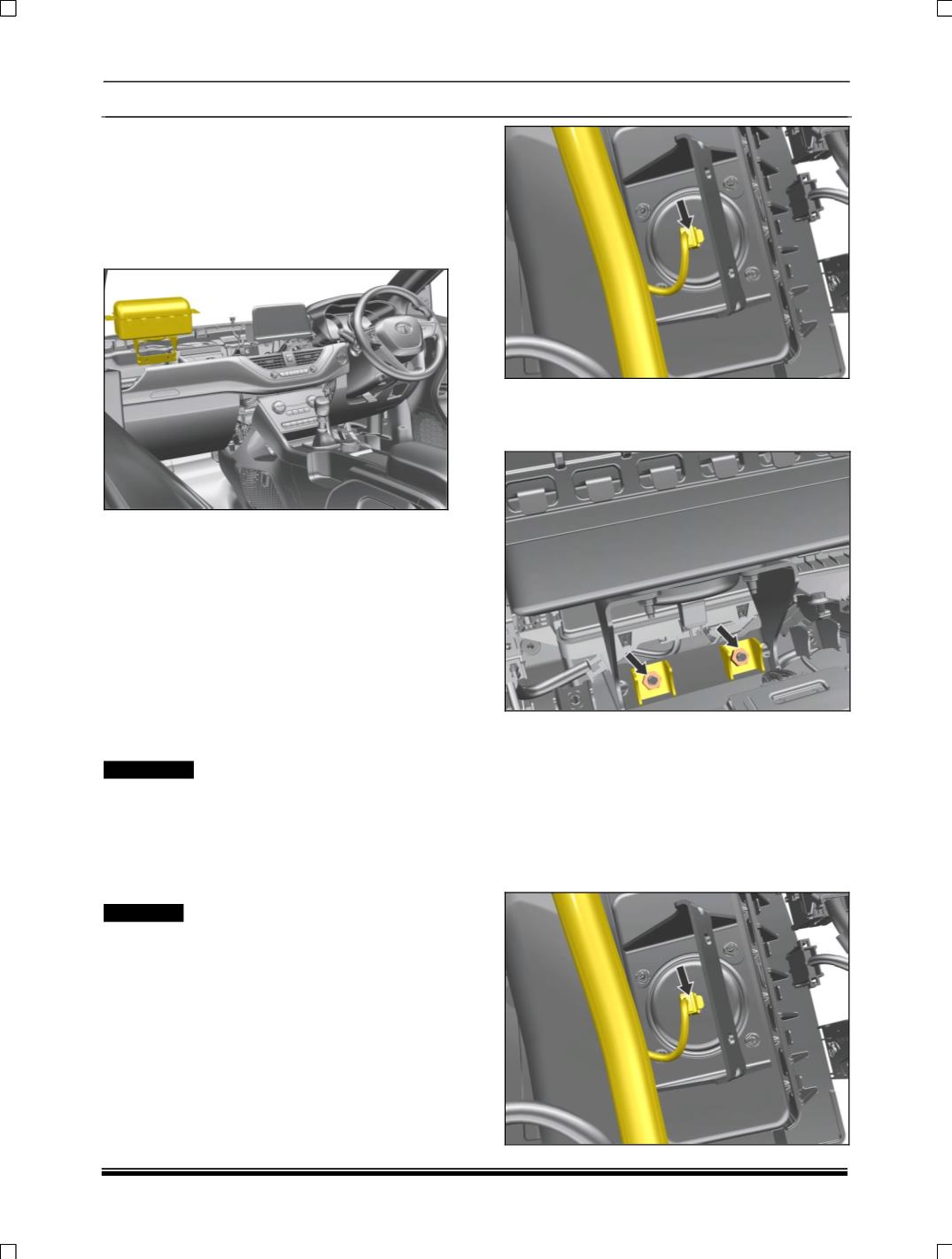

The passenger airbag module is located below

the dashboard; above the glove box and its

functioning is controlled by the SRS ECU. A bag

within the module inflates to protect the passenger

in the event of a collision severe enough to deploy

the system.

Within the passenger airbag module is a squib

which, when given the correct current by the SRS

ECU, inflates the airbag by initiating a chemical

reaction. In deployment, the airbag inflates within

a fraction of a second and then deflates at a

controlled rate as the passenger body regions;

typically head and chest interact with airbag.

Vents in the airbag control its deflation.

The SRS ECU regularly applies a test current to

the passenger airbag squib to confirm continuity

of the ignition circuitry.

ON VEHICLE SERVICE

!! WARNING

Always work on the air bag module from the side.

Always carry the module with the cover side

uppermost or away from the body in case being

carried vertically. Do not attempt to repair, open or

apply power (Multimeter) to the air bag module

terminals.

! CAUTION

Disconnect the battery negative lead.

REMOVAL

1. Disconnect the battery connections.

2. Remove Glow box. (For procedure refer glow

box removal process in Body Section)

3. Disconnect the electrical connector from the

PAB module.

4. Loosen and remove the mounting bolts which

hold the air bag bracket with the cross car

beam.

5. Carefully remove the PAB unit from the

Dashboard by removing all snaps and clips.

FITMENT

For fitment follow reverse procedure of removal.

NOTE:

Connector needs to be assembled before air bag

module fitment with CCB.
