FATC

34

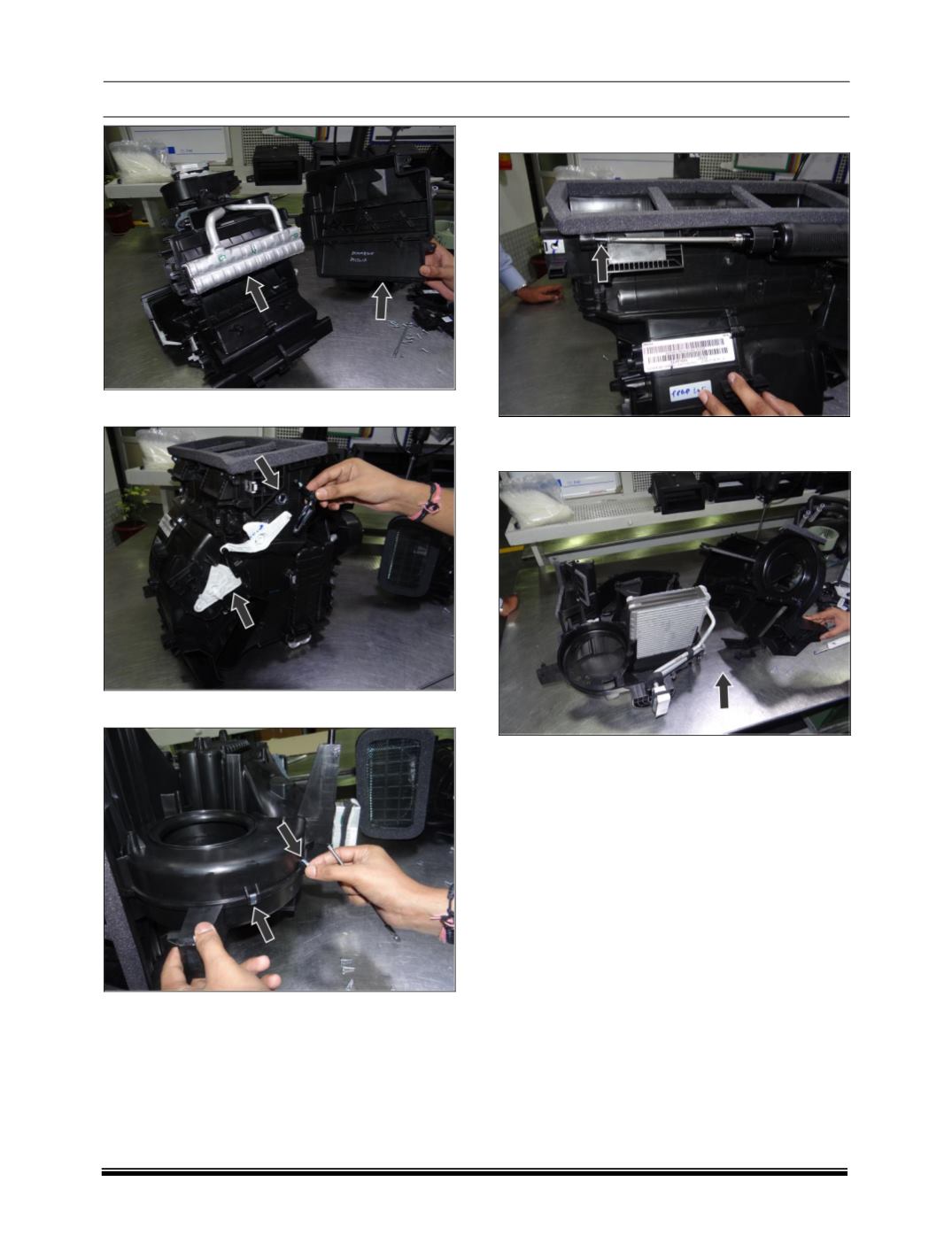

25. Remove all links.

26. Remove all clips.

27. Remove screw as shown.

28. Finally separate FATC unit & Evaporator as-

sembly.

REFITMENT

For fitment, follow reverse procedure of removal.
