NEXON

FATC

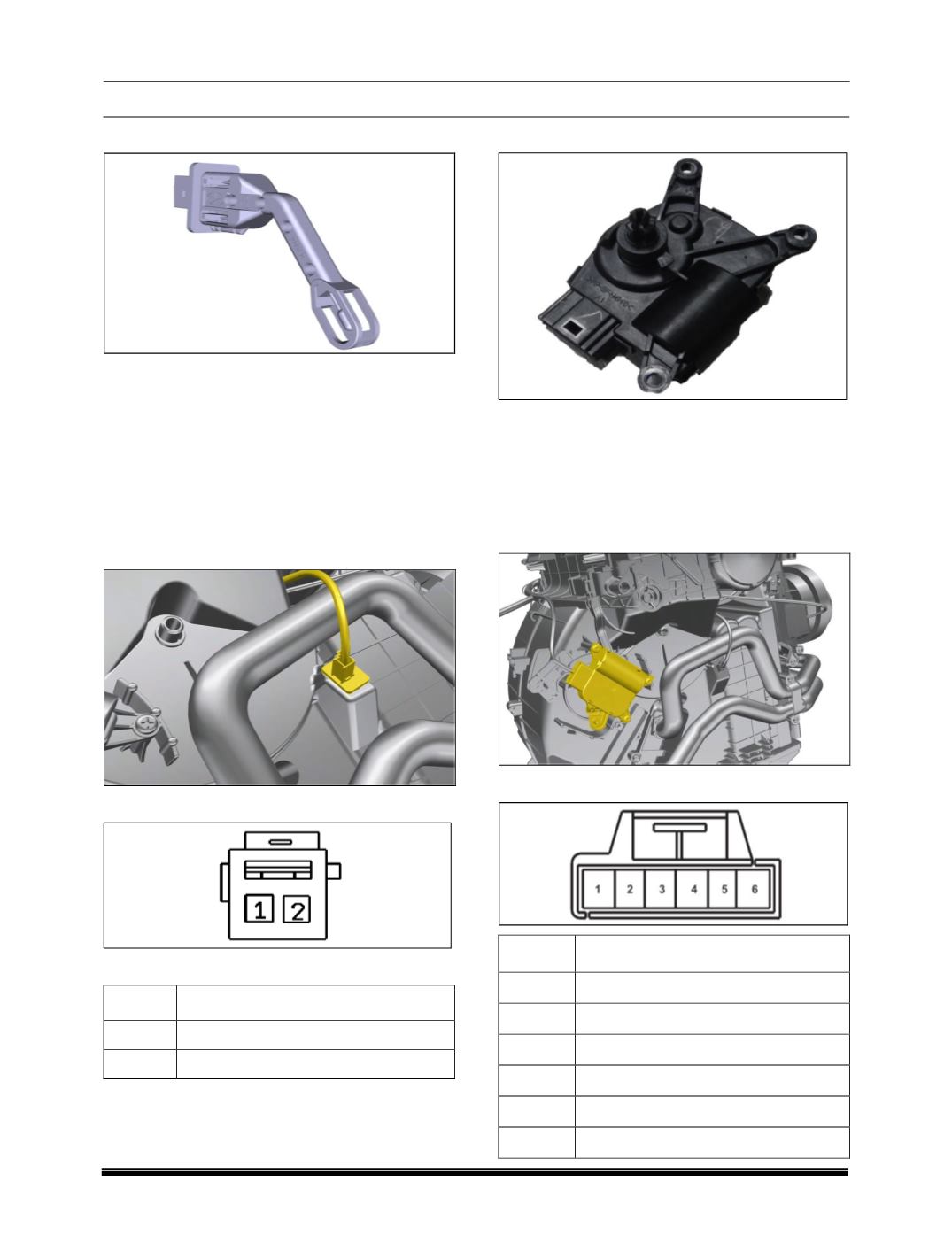

D. EVAPORATOR SENSOR

It is a temperature-sensing device, which is

positioned at the coldest point of the evaporator

(as

shown in the fig below)

. The control unit switches

OFF the compressor at a temperature when

condensed water tends to form ice on the fins of

evaporator. Thus, it maintains the evaporator

temperature within a specified range.

LOCATION

It is mounted on Air intake / Evaporator housing

assembly.

PIN OUT

PIN DETAILS

PIN NO DESCRIPTION

Temperature out to control panel

Ground

NOTE

Refer Evaporator sensor removal and installation

process from On Vehicle repairs in HVAC.

E. MODE ACTUATOR.

The actuator operates this flap in order to control the

airflow direction from the HVAC unit.

E.g., Face, Foot, Defrost etc.

NOTE:

The actuators used to operate the doors are

similar and can be interchanged.

LOCATION

PINOUT

PIN NO

DESCRIPTION

-ve (Ground)

feedback potentiometer

+ve

Not Used

+ve for CW & -ve for CCW

-ve for CW & +ve for CCW
