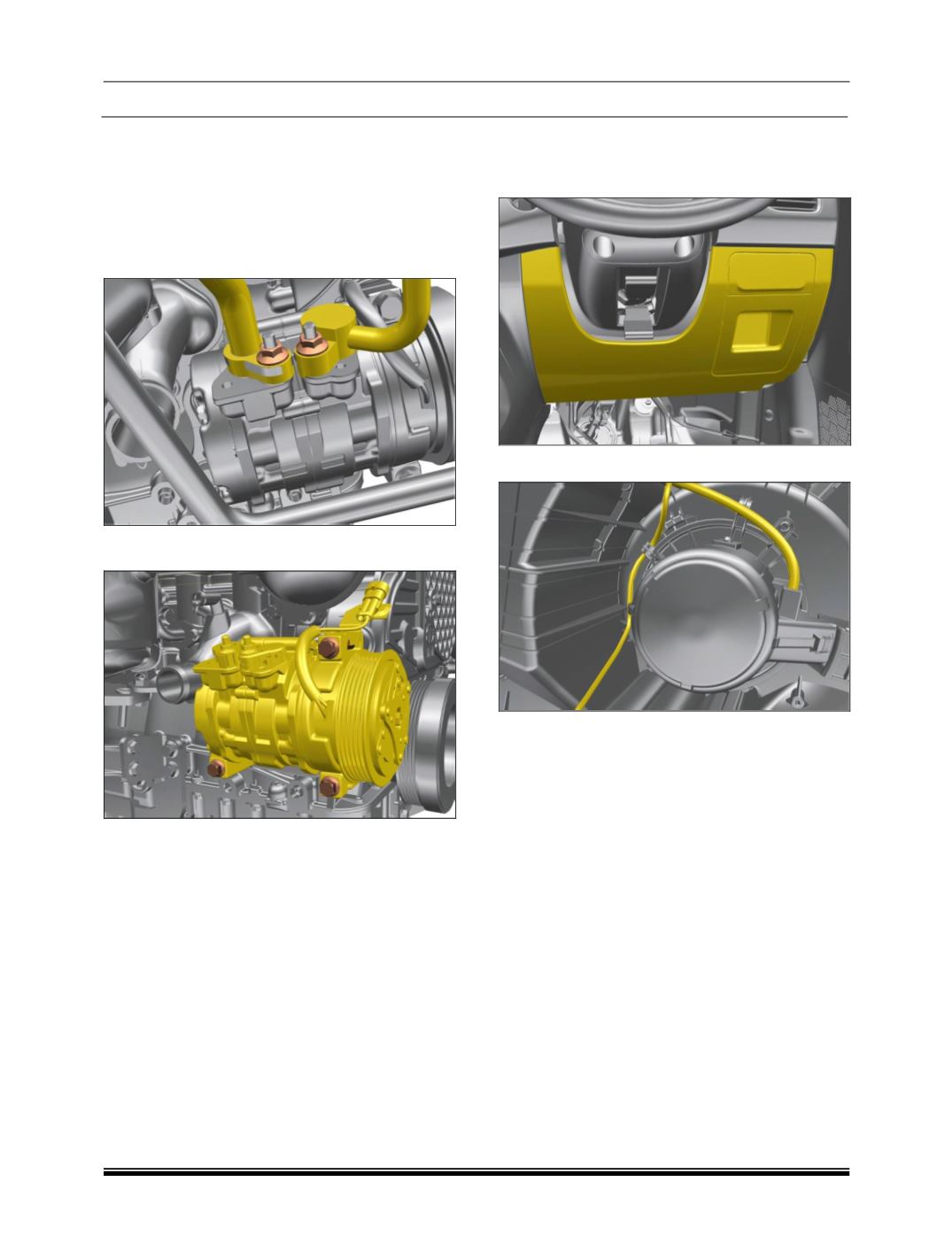

1.3.2. COMPRESSOR REMOVAL

1. Discharge the refrigerant using standard recover-

ing equipment. Refer maintenance section.

2. Remove the AC Compressor belt; refer AC Com-

pressor belt removal procedure.

3. Disconnect the Suction line (1) and the discharge

line (2).

4. Loosen and remove the mounting bolts (1) and

remove Compressor.

FITMENT

For fitment, follow the reverse order of removal.

Tighten the following fasteners to the recommended

torque.

i) Compressor mounting.

ii) Refrigerant lines on compressor.

1.3.3. BLOWER

(HVAC UNIT)

1. Remove the driver lower panel located below

dashboard top panel.

2. Disconnect electrical connections.

3. Remove dashboard with cross car beam assem-

bly. (For procedure, refer dashboard removal with

cross car beam in body section)

4. Loosen and remove three mounting bolts and

separate the blower from the HVAC assembly.

FITMENT

For fitment, follow reverse procedure of removal.
