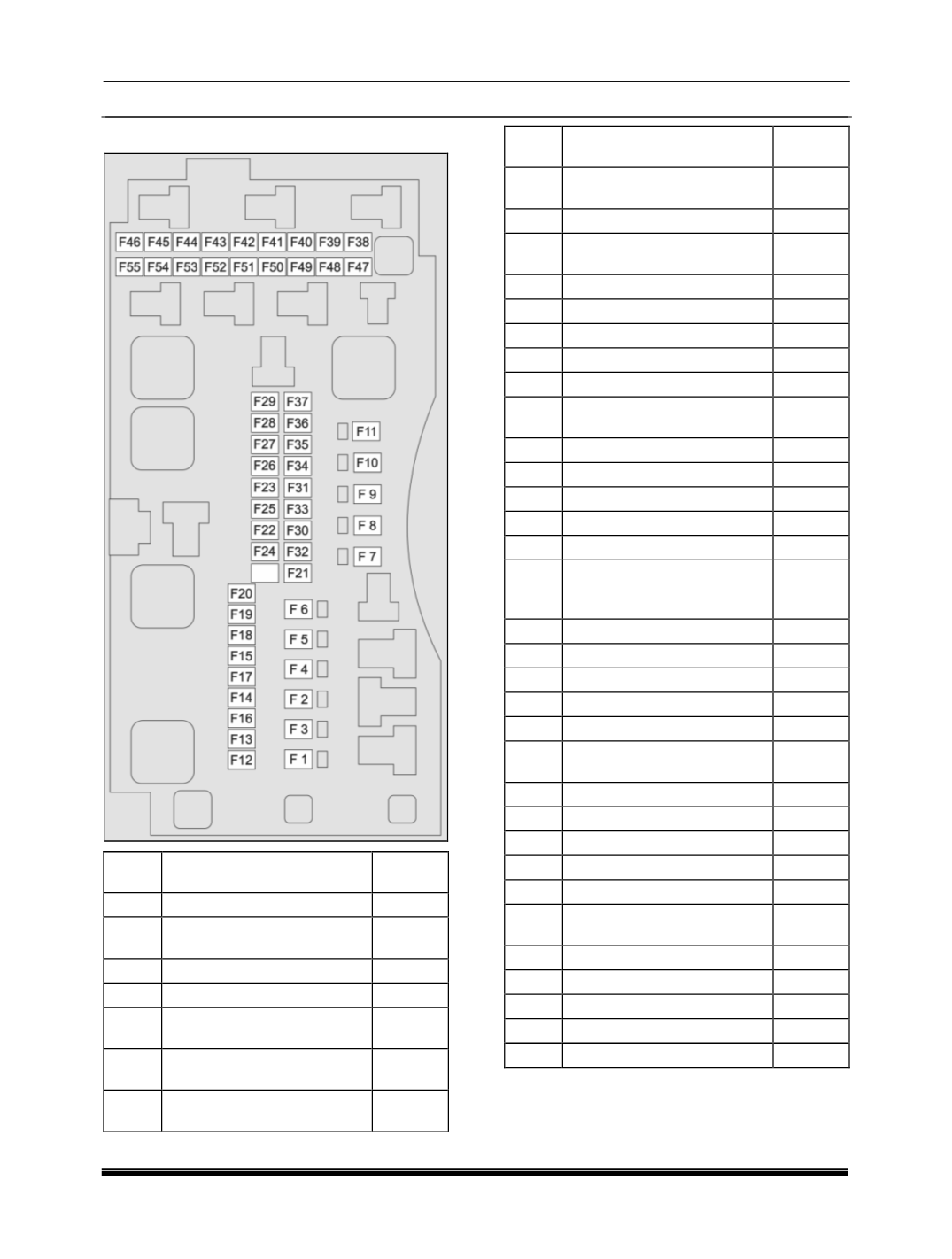

DIESEL VEHICLE
FUSE
NO.
FUNCTION
FUSE
RATING
0
ALTERNATOR (DIESEL)
150 A
1
SUPPLY TO CABIN FUSE
BOX
60 A
2
ABS ECU
40 A
3
GLOW PLUG (DIESEL)
60 A
4
COOLING / RADIATOR
FAN
40 A
5
STARTER MOTOR SOL
RELAY CONTACT
30 A
6
RADIATOR FAN SERIES
RESISTIR (LOW)
25 A
FUSE
NO.
FUNCTION
FUSE
RATING
7
SUPPLY TO CABIN FUSE
BOX-1
60 A
8
HEAD LAMP SUPPLY
40 A
9
TRANS. CONTROL UNIT
(AMT)
30 A
10
IGNITION LOAD
40 A
11
EPAS
60 A
12
COMPRESSOR
10 A
13
MAIN RELAY
30 A
14
ABS ECU
25 A
15
TRANS. CONTROL UNIT
(AMT)
10 A
16
HORN HIGH / LOW TONE
15 A
17
SPARE
-
18
EMS BATT / MAIN RELAY
5 A
19
BRAKE SWITCH
10 A
20
SPARE
-
21
FORNT WASH MOTOR
(NON BCM) / FRONT FOG
LAMP
10 A
22
STATER FEEDBACK
5 A
23
SPARE
-
24
SPARE
-
25
H/L LOW
15 A
26
SPARE
-
27
TRANS. CONTROL UNIT
(AMT)
10 A
28
ECU SENSOR
15 A
29
SPARE
-
38
EMS ECU
15 A
39
ECU RELAY CONTROL
5 A
40
SPARE
-
41
REVERSE AND BRAKE
LAMP
10 A
42
ABC ECU
5 A
43
FRONT WIPER MOTOR
20 A
44
SPARE
-
45
REAR WIPER MOTOR
10 A
46
HEAD LAMP HIGH BEAM
15 A
