1.5L REVOTORQ ENGINE
147

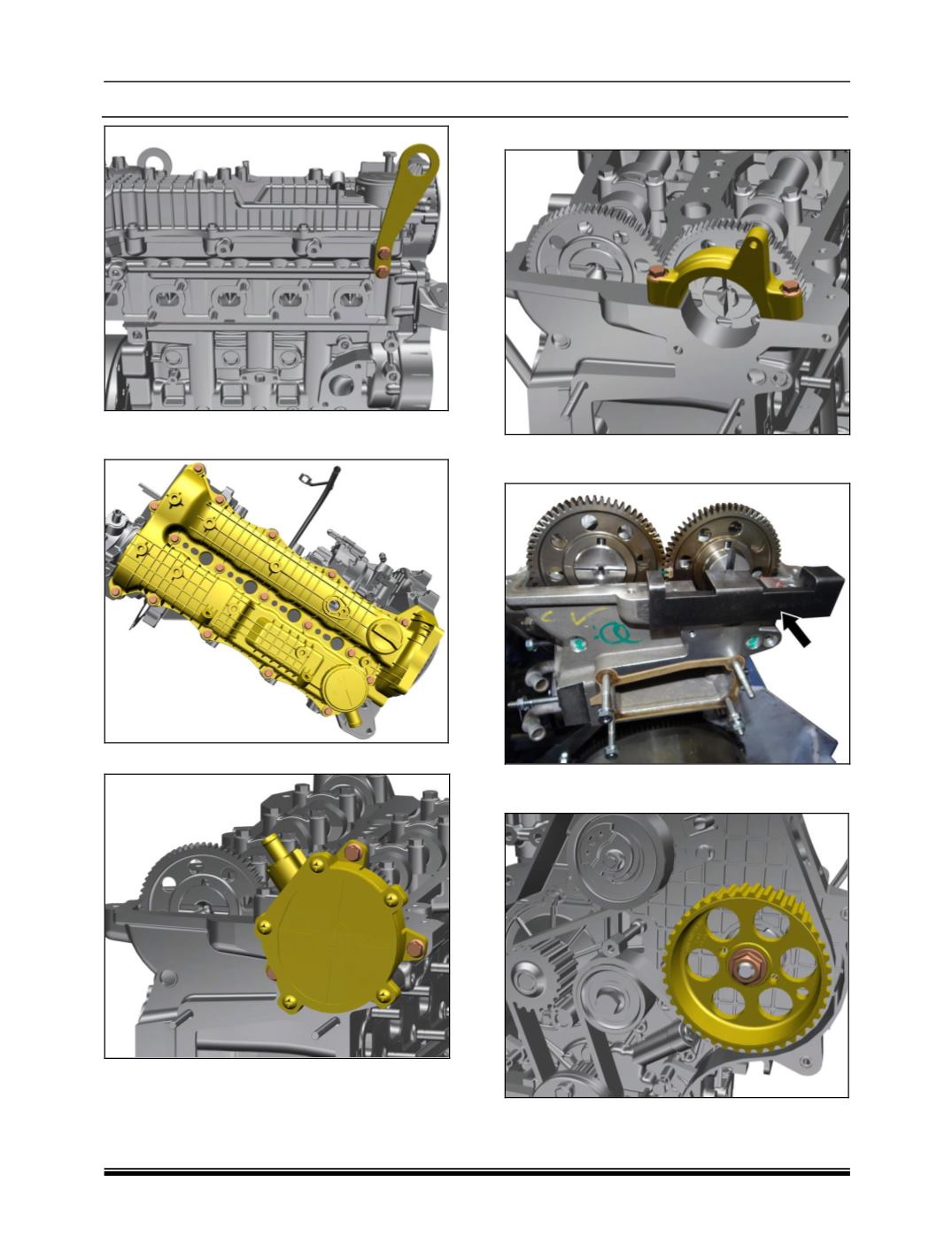

6. Remove the mounting bolts and take out the
head cover assembly.
7. Remove the vacuum pump assembly.
8. Remove the camshaft bearing cap.
9. Insert the camshaft locking plate
(part no.
2868 5890 0603)
to lock camshaft.
10. Loosen the torque on the FIP gear mounting
nut.
11. Keep the mounting nut loosely wound on the
HP pump shaft.
