NEXON

HVAC

1.3. ON VEHICLE REPAIRS

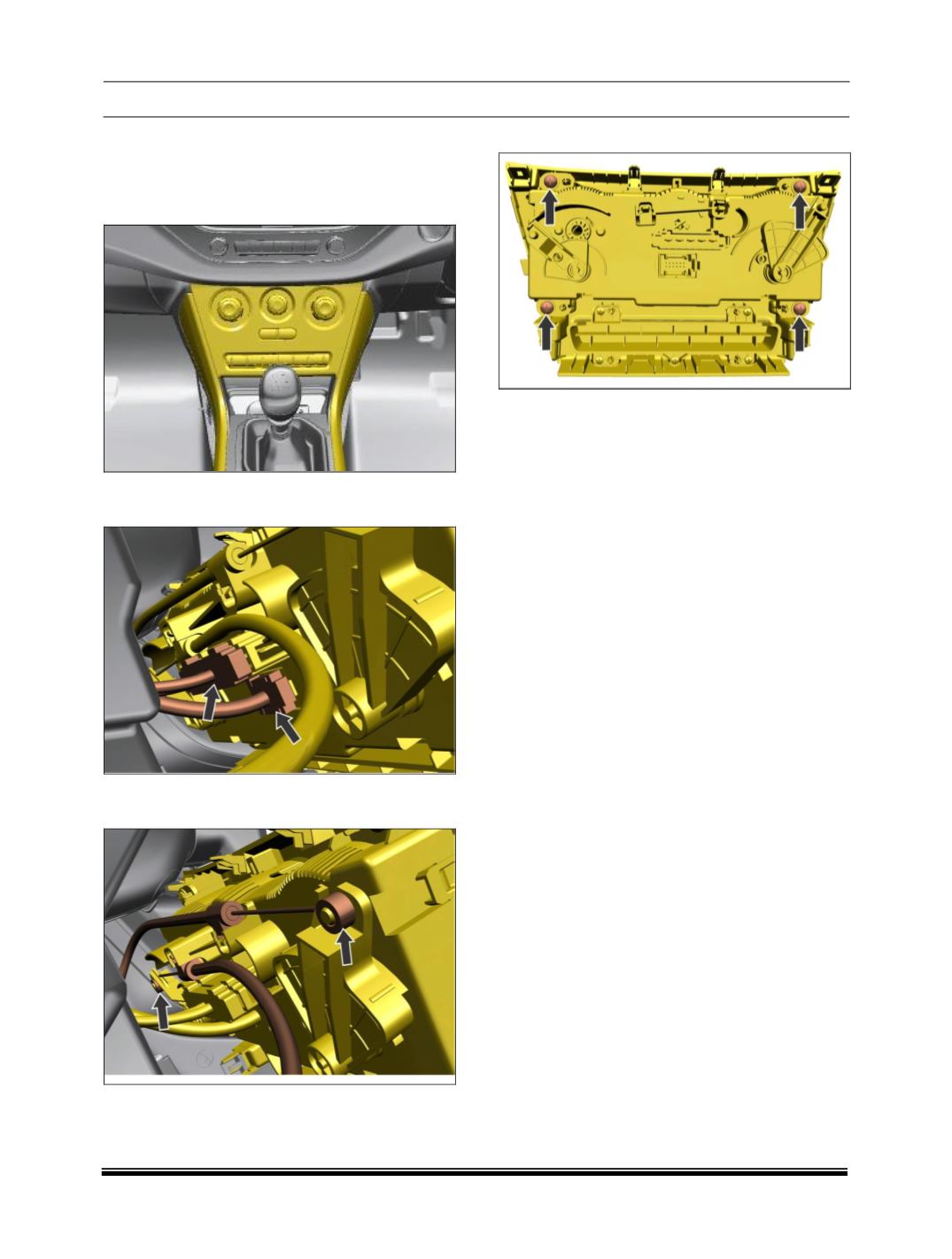

1.3.1 CONTROL PANEL ASSEMBLY

1. Remove the top console panel along with control

panel.

2. Disconnect two electrical connections behind the

control panel assembly.

3. Disconnect two Bowden cable connections be-

hind the control panel assembly.

4. Remove four mounting screws of control panel.

5. Take out the control panel.
