83 / 561
AMT KIT
3
3. TIGHTENING TORQUES AND CONSTRUCTIONAL DETAILS: -
Precautions: -
1.
The fasteners should be tightened to following specified torque. If the fasteners are not
tightened to specified torque that is either over tightened or under tightened. It will result in
leakage at joints & damage to the parts/threads. It will also adversely affect the performances
of the parts / system because various clearances / bearing plays in the aggregates are
governed by the recommended torques of the fasteners
.
2.
When choosing the torque wrench, remember that it should not be subjected to torque
exceeding three fourth of its capacity.
3.
Before tightening, clean the threads and apply a little lubricating oil if required.

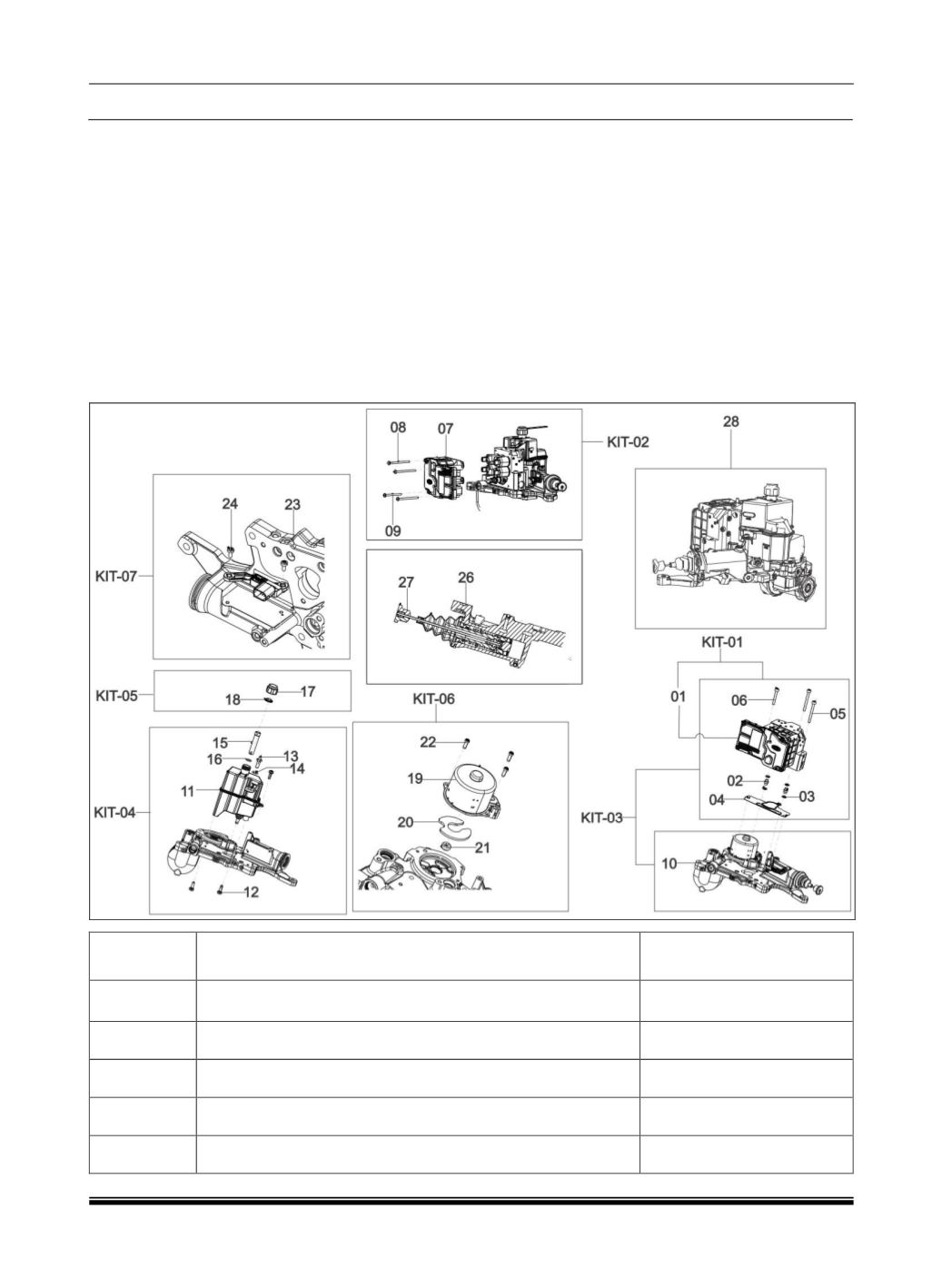

EXPLODED VIEW AMT KIT
SR. NO.
DESCRIPTION
TORQUE (Kg-m)
KIT-01
GEAR ACTUACTOR UNIT GEAR ACTUATOR
01
MECHATRONIC GEAR ACTUATOR
02
CONNECTOR
03
GASKET O-RING
04
GASKET FLAT PROFILE
