ELECTRICAL
103

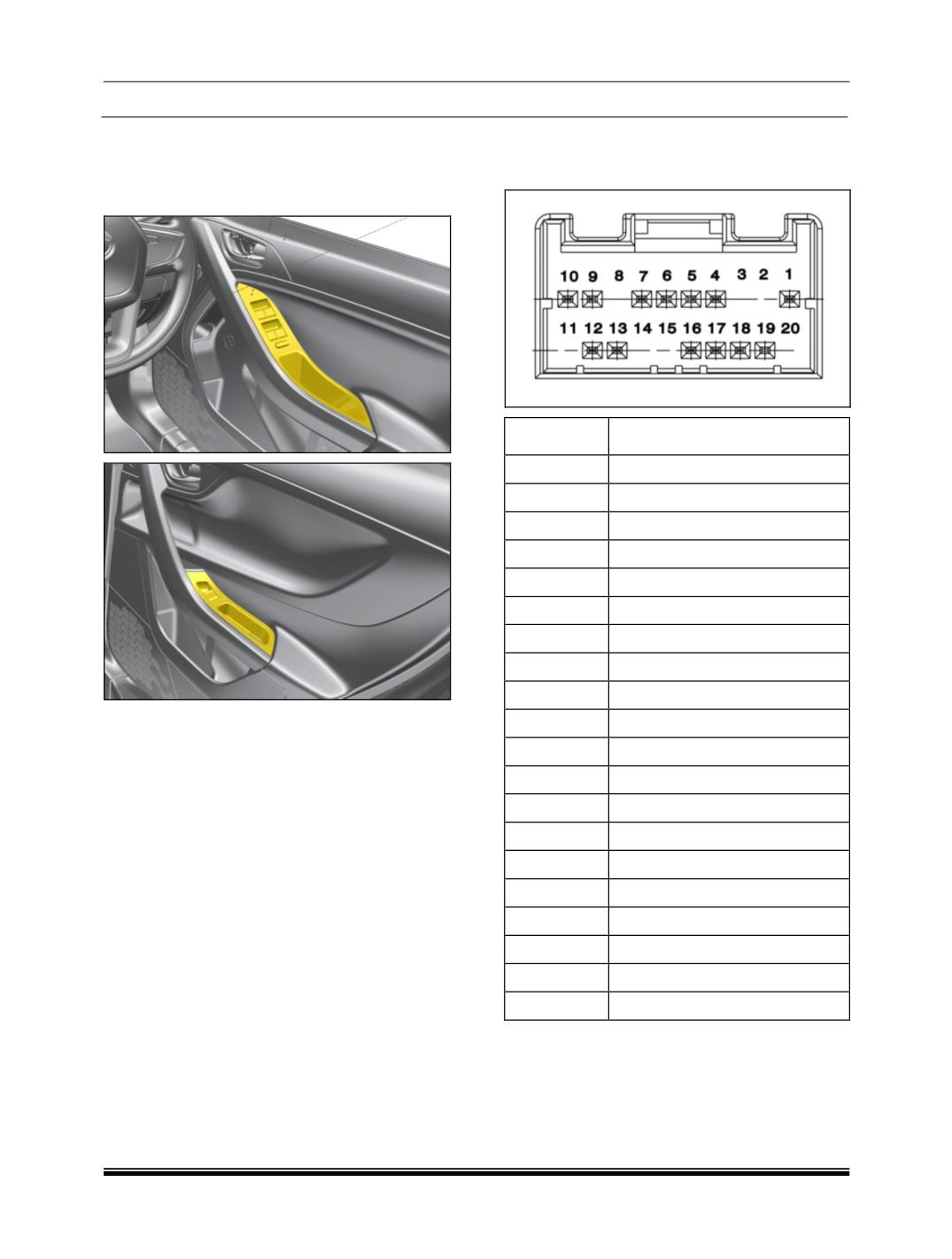

LOCATION
Window winding switches are provided on RH
side front door. Separate individual switch is
provided on front door LH & rear RH / LH doors.
The switch will function when ignition key is turned
to ‟ON‟ position.
For taking window glass “UP”, Pull the knob. And
for window glass “Down”, Push the knob .
Do not press switch further when window glass is
at its extreme position.
Do not operate window glass frequently,
otherwise Window winding motor may get over
heated and stop working till it cools down
Driver Door Window winding switch is
20 pin connector. For pin out details refer
below table.
PIN
DESCRIPTION
1
WINDOW LOCK
2
BLANK
3
BLANK
4
REAR RH (UP)
5
REARRH(DOWN)
6
EARTH
7
REAR LH(DOWN)
8
BLANK
9
REAR LH(UP)
10
+VE FORW/LOCK INDICATOR
11
BLANK
12
FRONT LH (DOWN)
13
FRONT LH(UP)
14
BLANK
15
BLANK
16
-VE LED ILLUMINATION
17
+VE LED ILLUMINATION
18
FRONT RH(UP)
19
FRONT RH(DOWN)
20
BLANK
