1.5L REVOTORQ ENGINE
98

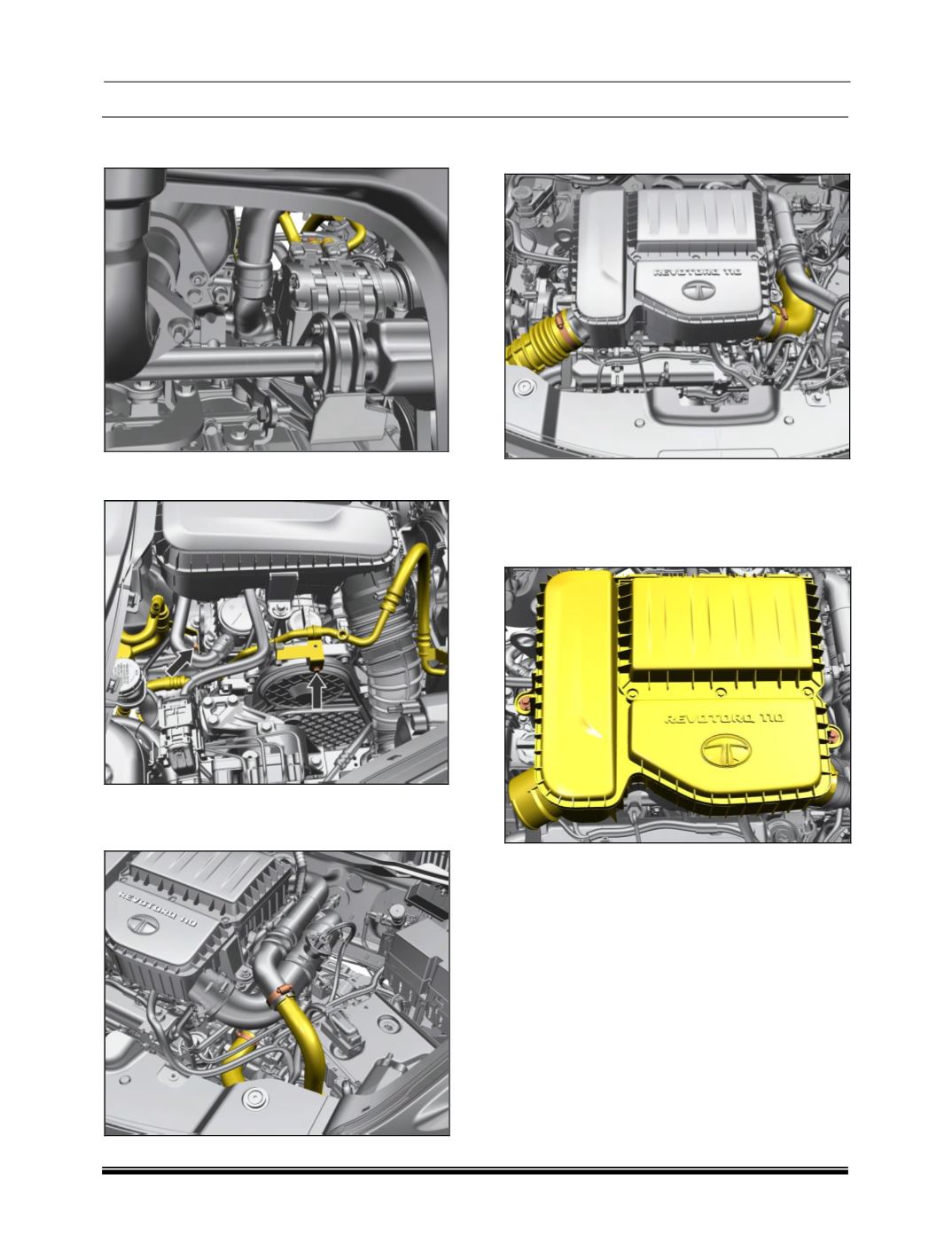

13. Remove the coolant hoses from the engine
compressor.
14. Remove the coolant lines supports mounted
on the engine.
15. Disconnect the hose connecting thermostat to
the radiator and the hose connecting TC to
intercooler.
16. Remove the clamps and disconnect the air
filter hoses.
17. Remove the air filter mounting bolts and pull
in outward direction to dislocate the filter
assembly from the locating bush on the rear
side. The air filter assembly will be come out
along with the foam.
