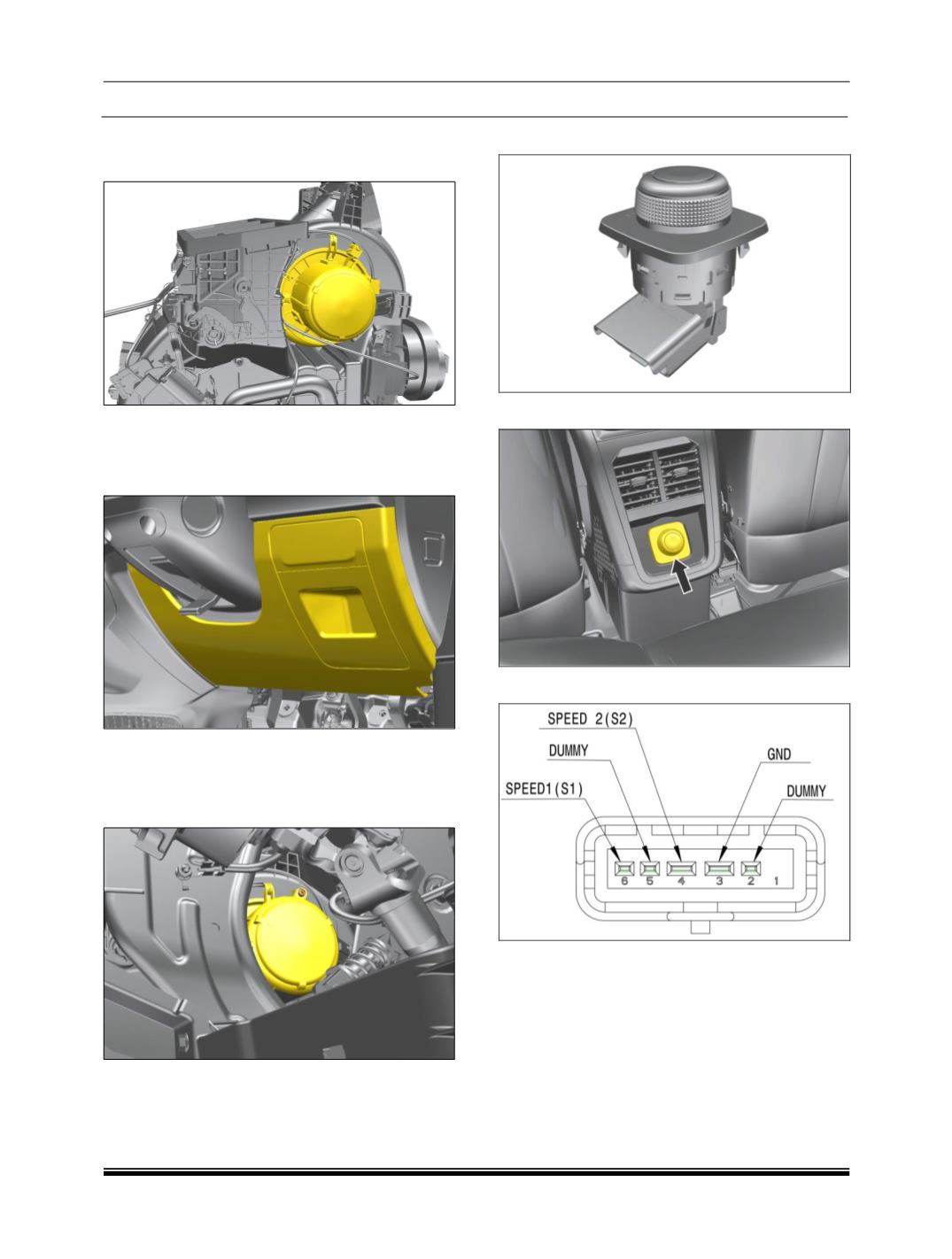

1.11. FRONT HVAC BLOWER ASSY

LOCATION

It is located on the right top side of the HVAC unit.

REMOVAL

1. Remove steering column cover.

2. Access the blower from driver side. Remove the

electrical connection from the module.

3. Loosen and remove mounting screw of blower

motor.

4. Rotate blower assembly in anticlockwise direc-

tion & take out the same.

REFITMENT

For fitment, follow reverse procedure of removal.

1.12. REAR BLOWER SWITCH

LOCATION:

PIN OUT DETAILS
