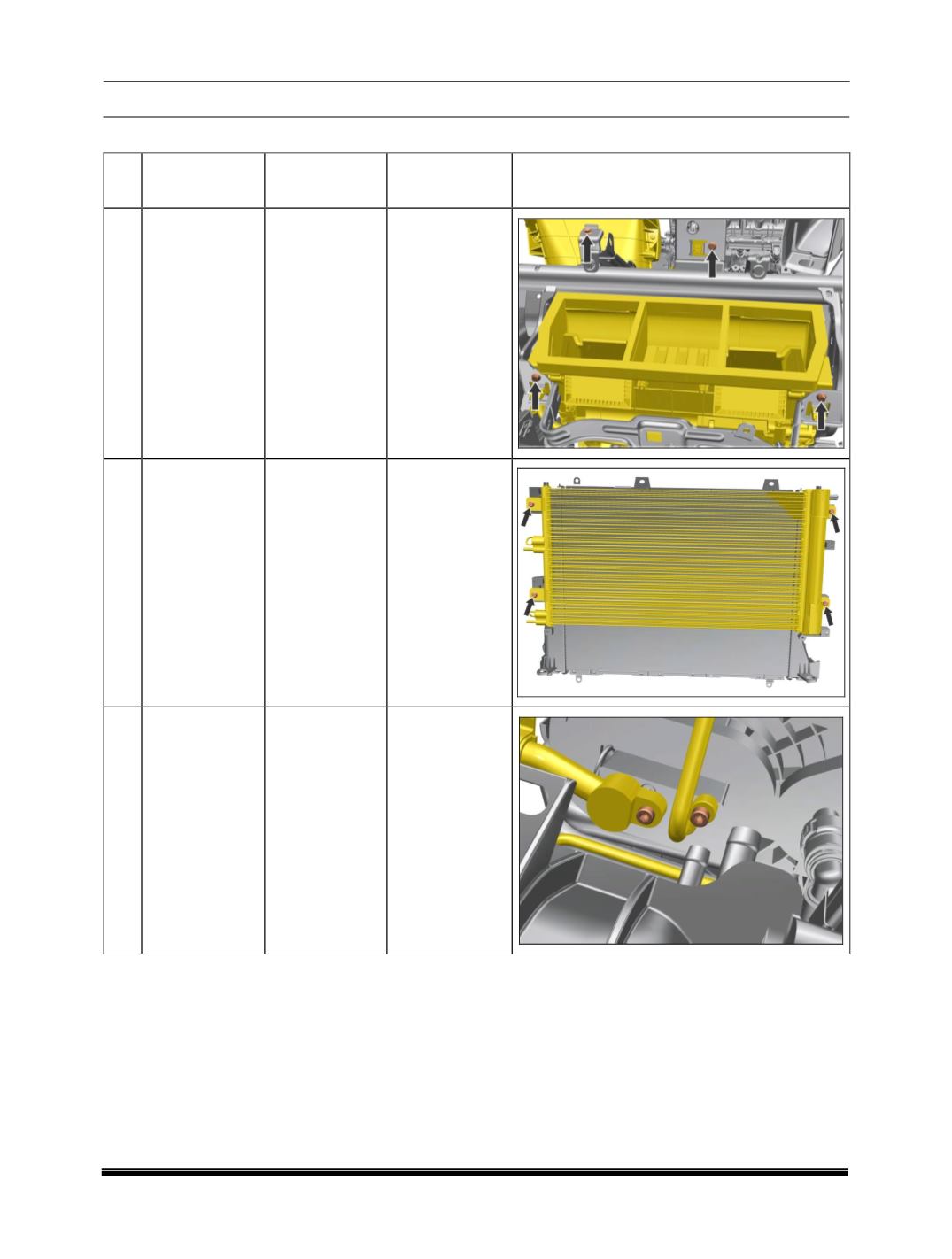

HVAC
6
FOR DIESEL MODEL
SR
NO.
DESCRIPTION
FASTENER
TIGHTENING
TORQUE (N-m)
LOCATION
1
Front
HVAC
mounting
Hex FL nut AM6
TS17430-8-
SS8451S2
6 – 8
2
Condenser
mounting on ra-
diator
M6 X 18
6 – 8
3
Refrigerant lines
to HVAC unit
M6 X 20
6 – 8
