982 / 1034
HVAC
69

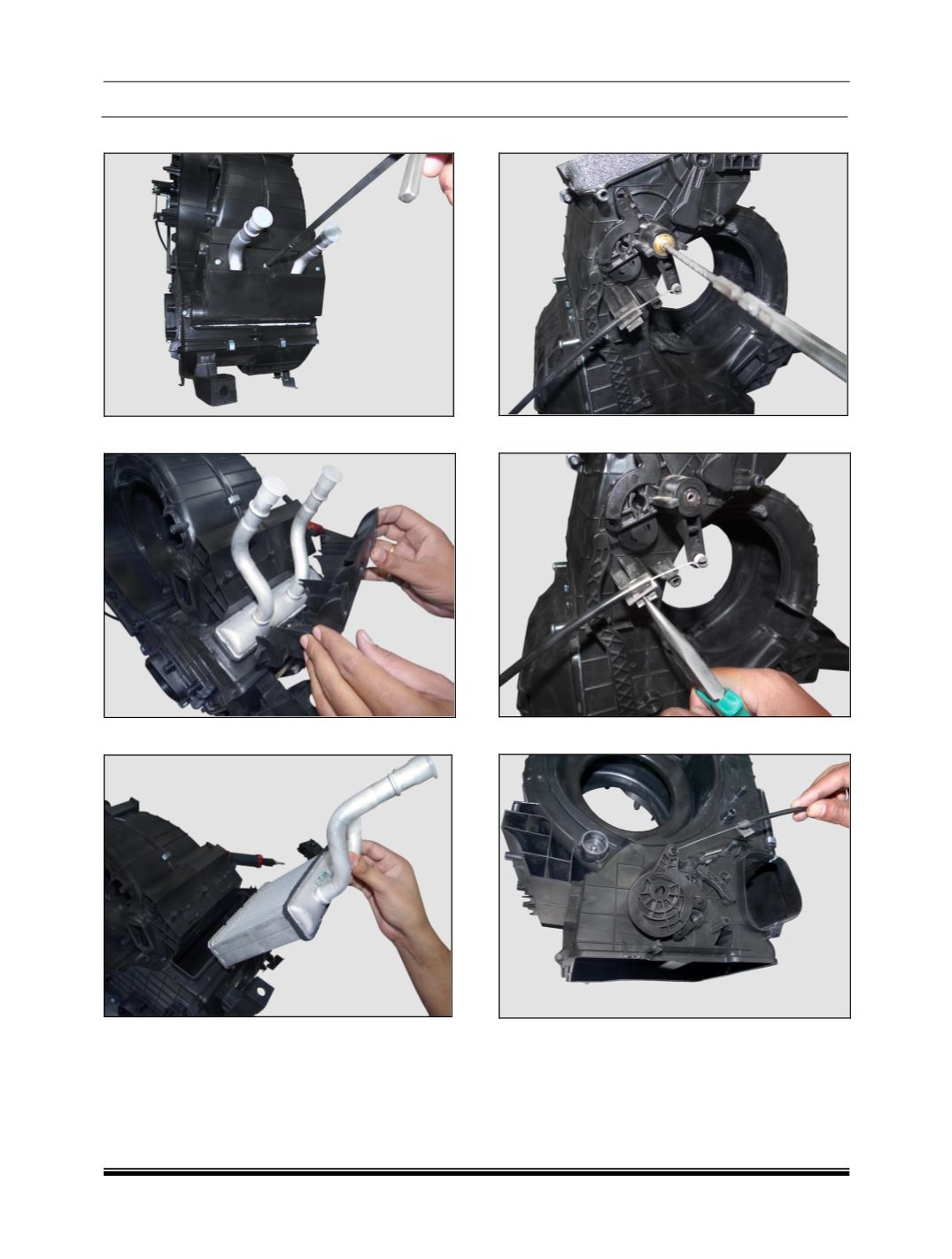

24.Remove the five fasteners of heater.
25.Remove the cover of heater.
26.Pull out the heater.
27.Remove the screw of actuator link.
28.Remove Bowden cable clamp.
29.Remove the Bowden cable.
|
|
