10.3.9. CONDENSER SEALING DUCT

REMOVAL

1. Remove the bumper (Refer Body section).

2. Open the bonnet.

3. Remove horns from both ends.

4. Loosen and remove mounting screws.

FITMENT

For fitment follow the reverse procedure of removal

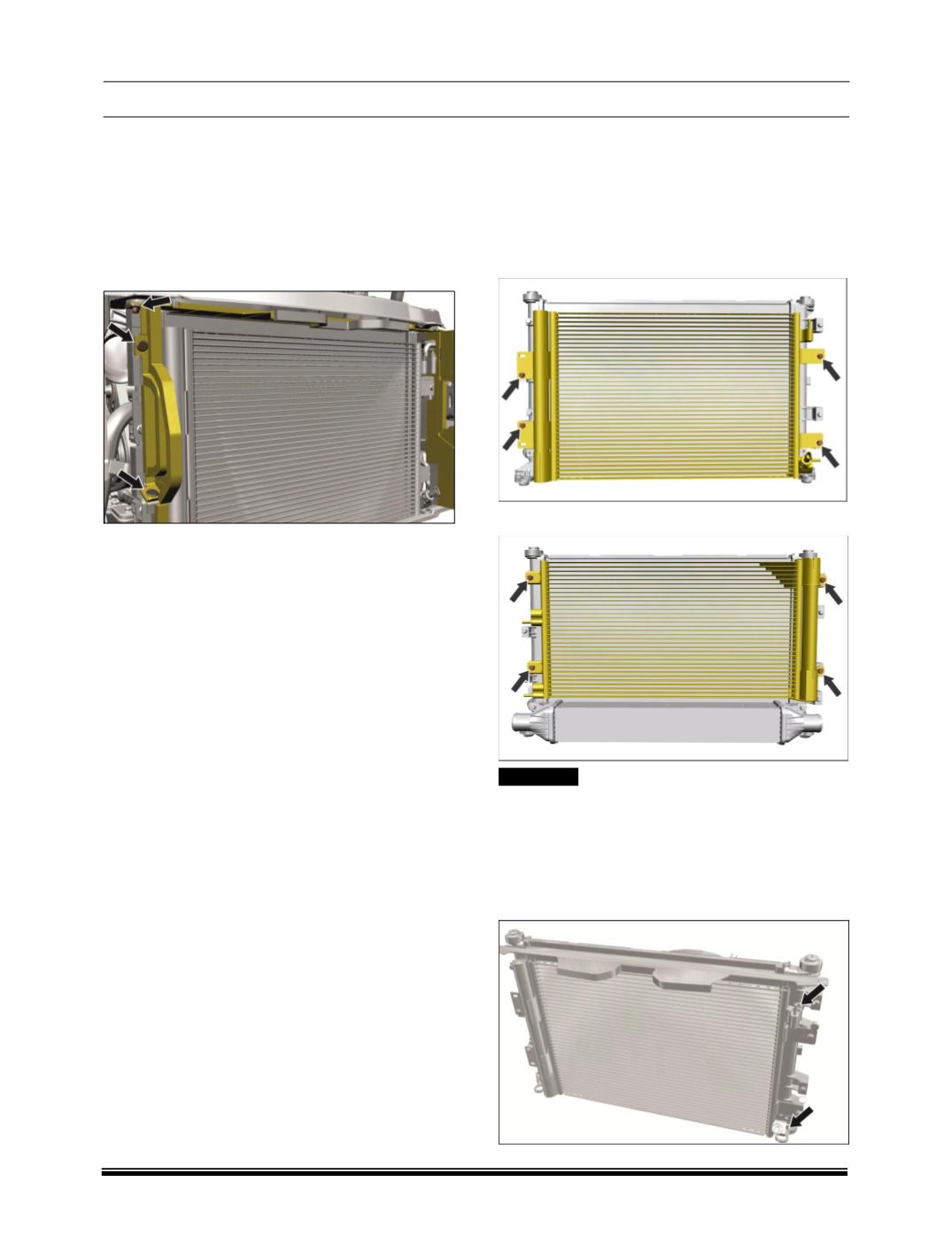

10.3.10. CONDENSER

1. Remove the radiator (Refer Radiator removal

process).

2. Loosen and remove the 4 condenser mounting

bolts on the radiator and separate out the con-

denser.

FOR PETROL

FOR DIESEL

! CAUTION

Never leave the condenser lines open immediately

cover them with caps, otherwise the desiccant

which is in-built in the condenser may absorb the

moisture from surrounding air and get contaminat-

ed.

FOR PETROL
