ELECTRICAL

198

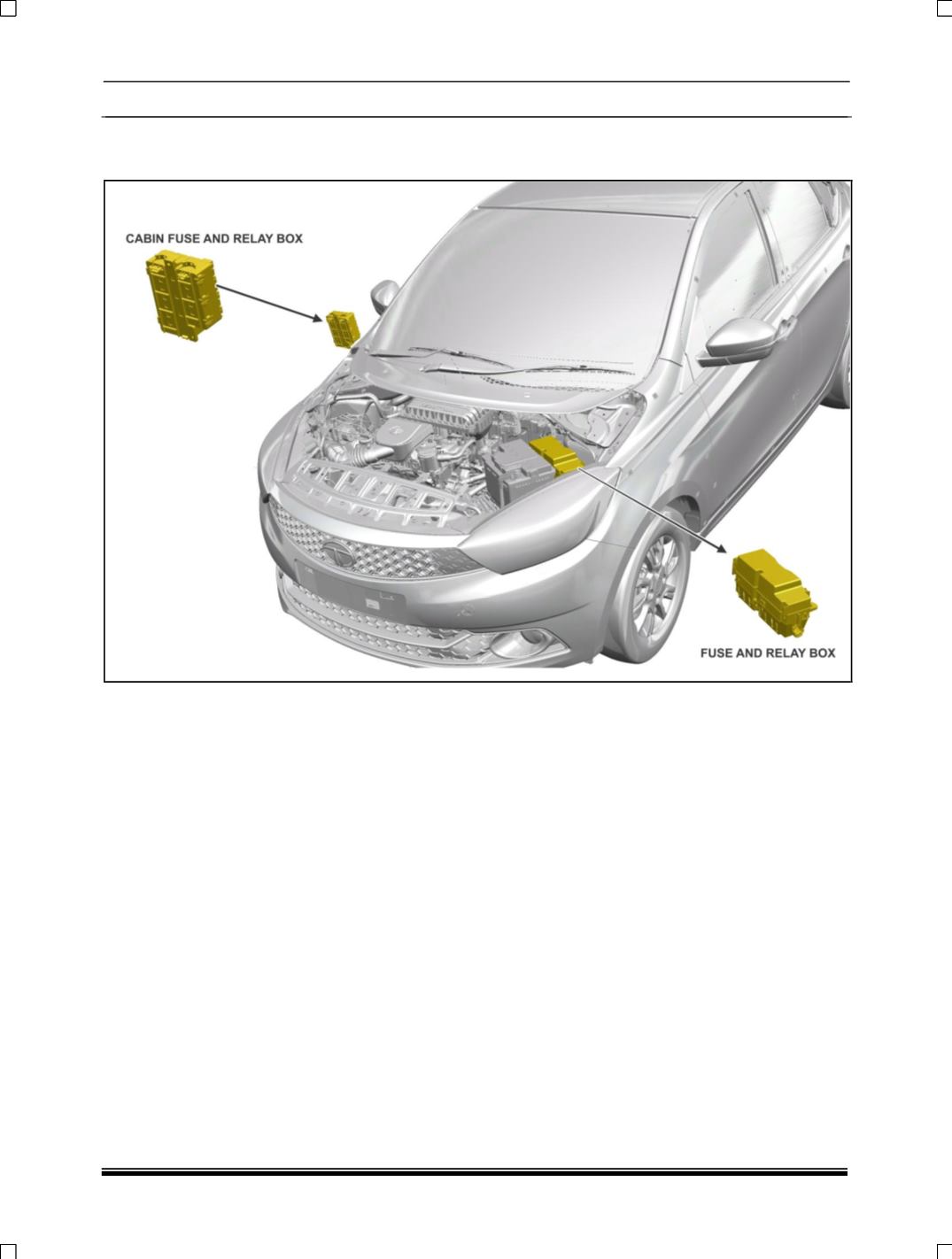

FUSE AND RELAY BOX: LAYOUT

This fuse box is directly mounted on battery positive terminal. Bus-bar type construction is used.
