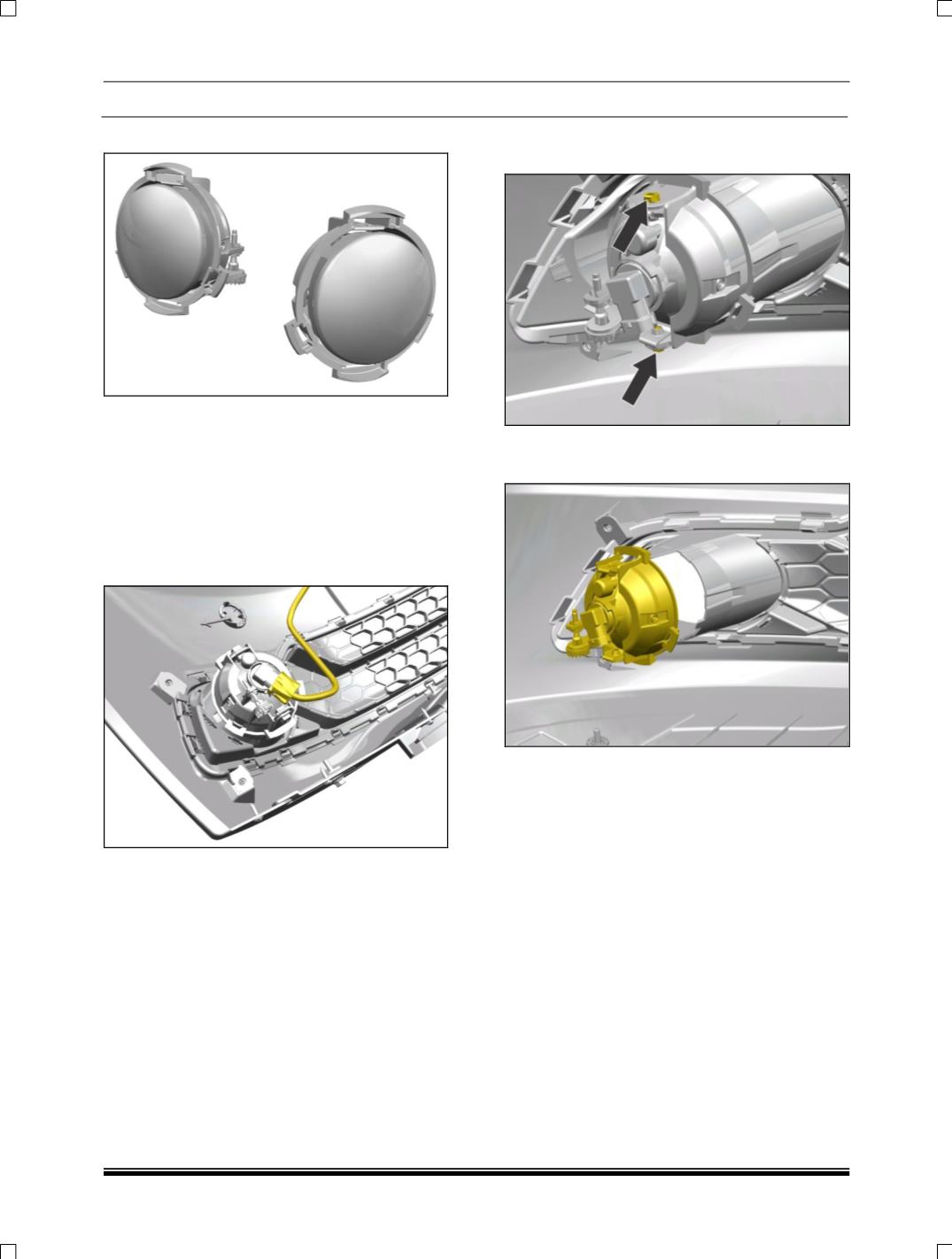

7.9. FRONT FOG LAMP
The fog lamps are located in the lower part of the
front bumper. The bulb used for the fog lamp
function is a halogen H16 bulb, 12V - 19W.
Fog lamp on/off is done by using master light
switch.
REMOVAL:
1. Disconnect the electrical connection of fog
lamp.
2. Remove two allen screws used for fitting the
lamp housing on the bumper.
3. Pull out fog lamp in opposite direction of its
fitting.
REFITMENT:
For refittment follow the procedure in reverse.
BULB REPLACEMENT PROCEDURE:
1. Disconnect the electrical connection.
2. Remove the bulb assembly by rotating in
anticlockwise direction.
3. Take out the bulb from holder& replace with
new one.
4. Fit the assembly by rotating in clockwise
direction.
5. Connect the electrical connection.
