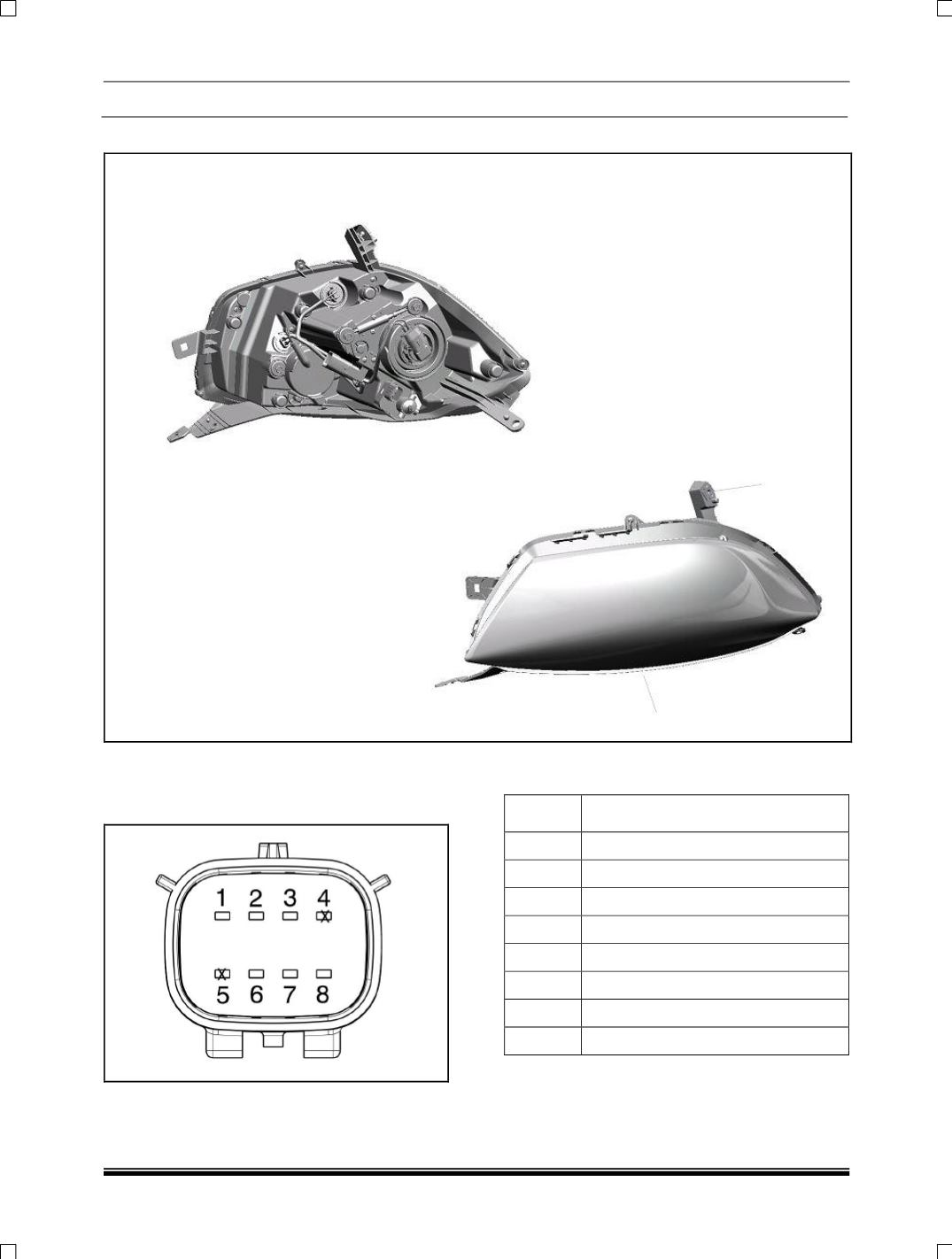

7.4. HEAD LAMP
PINOUT DETAILS
a. Head lamp connector
PIN
DESCRIPTION
1
Low Beam
2
High Beam
3
Turn Indicator
4
Dummy
5
Dummy
6
Ground (For Low/ Position)
7
Ground (For Turn & High)
8
Position Function
|
|
