TIAGOR

STEERING

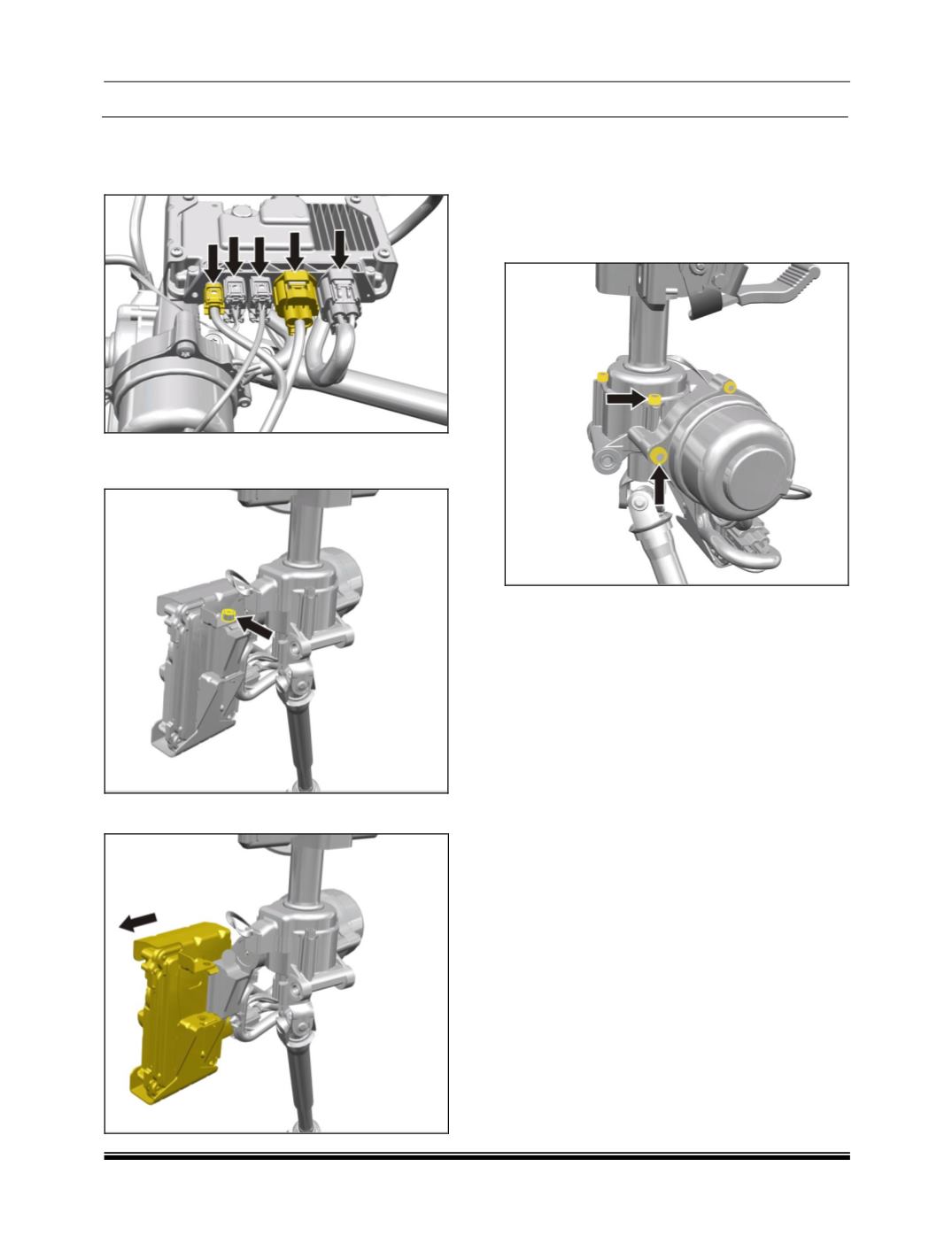

ECU Removal along with bracket

1. Disconnect the electrical connectors from the

ECU

2. Remove the ECU mounting bracket Allen

screw provided behind the ECU

3. Slide the ECU along with bracket sideways.

REFITMENT:

For assembly follow reverse procedure of

removal.

NOTE:

Do not open the servo unit (shown below) for any

repair because it is precisely calibrated.
