STEERING
1
1. GENERAL INFORMATION
1.1. SPECIFICATIONS
TYPE
Column mounted Electrical power assisted steering system with,
mechanical Rack and Pinion steering gear with collapsible and till type
steering column.
STEERING WHEEL 3 Spoke & 360 mm Dia.
STEERING WHEEL TURN 3.05
STEERING RATIO 15.89 : 1

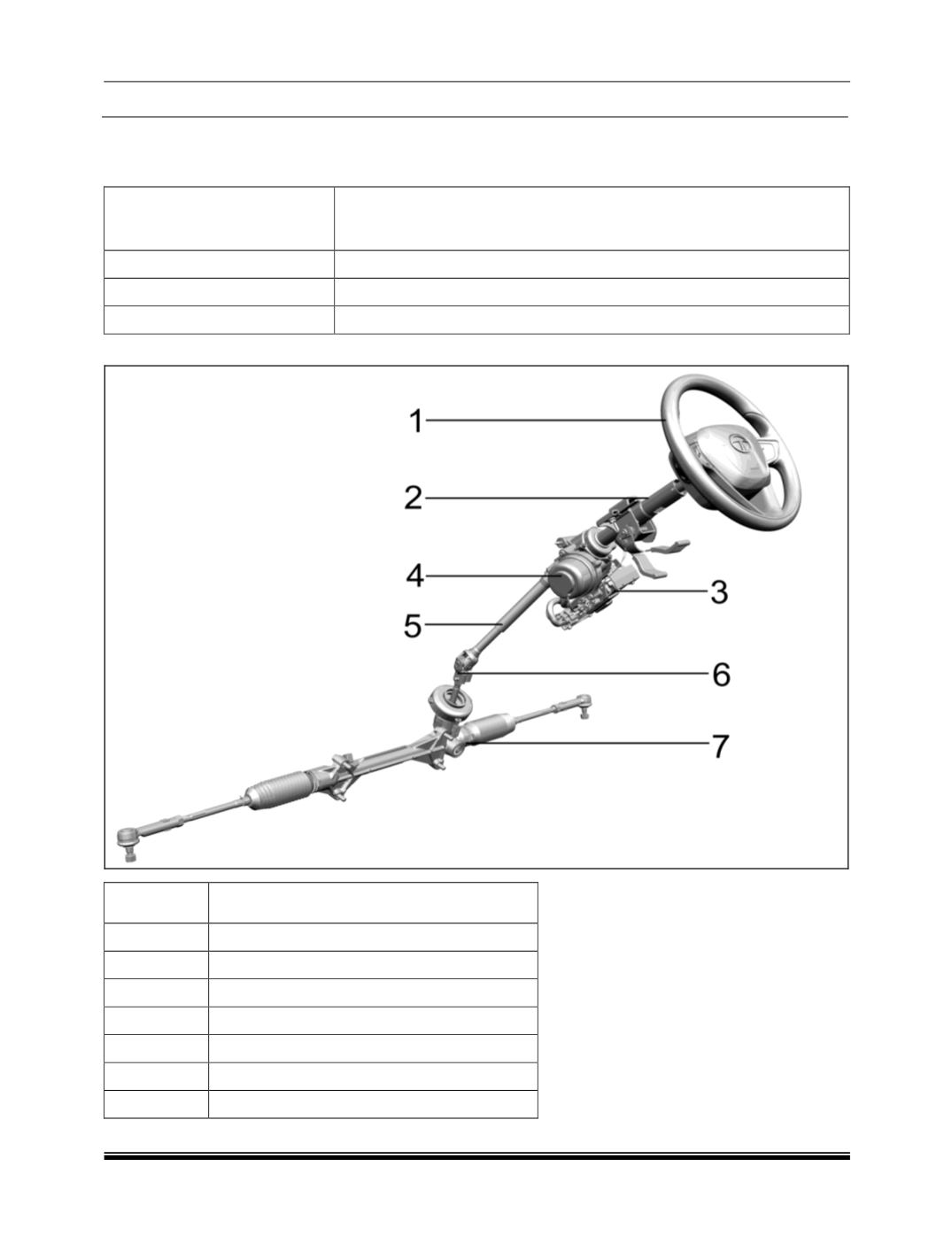

1.2. SYSTEM LAYOUT
DESCRIPTION
1 Steering wheel
2 Steering column
3 ECU
4 Servo Unit
5 Intermediate shaft
6 Universal Joint
7 Mechanical Rack and pinion assembly.
