TIAGOR

SUSPENSION



INSTALLATION:

1. Follow the above steps in reverse order in ap-

propriate sequence for its assembly.



PRECAUTION:

While assemble / dismantle/ tightening of stab link

on vehicle in service, we need to refer following

points

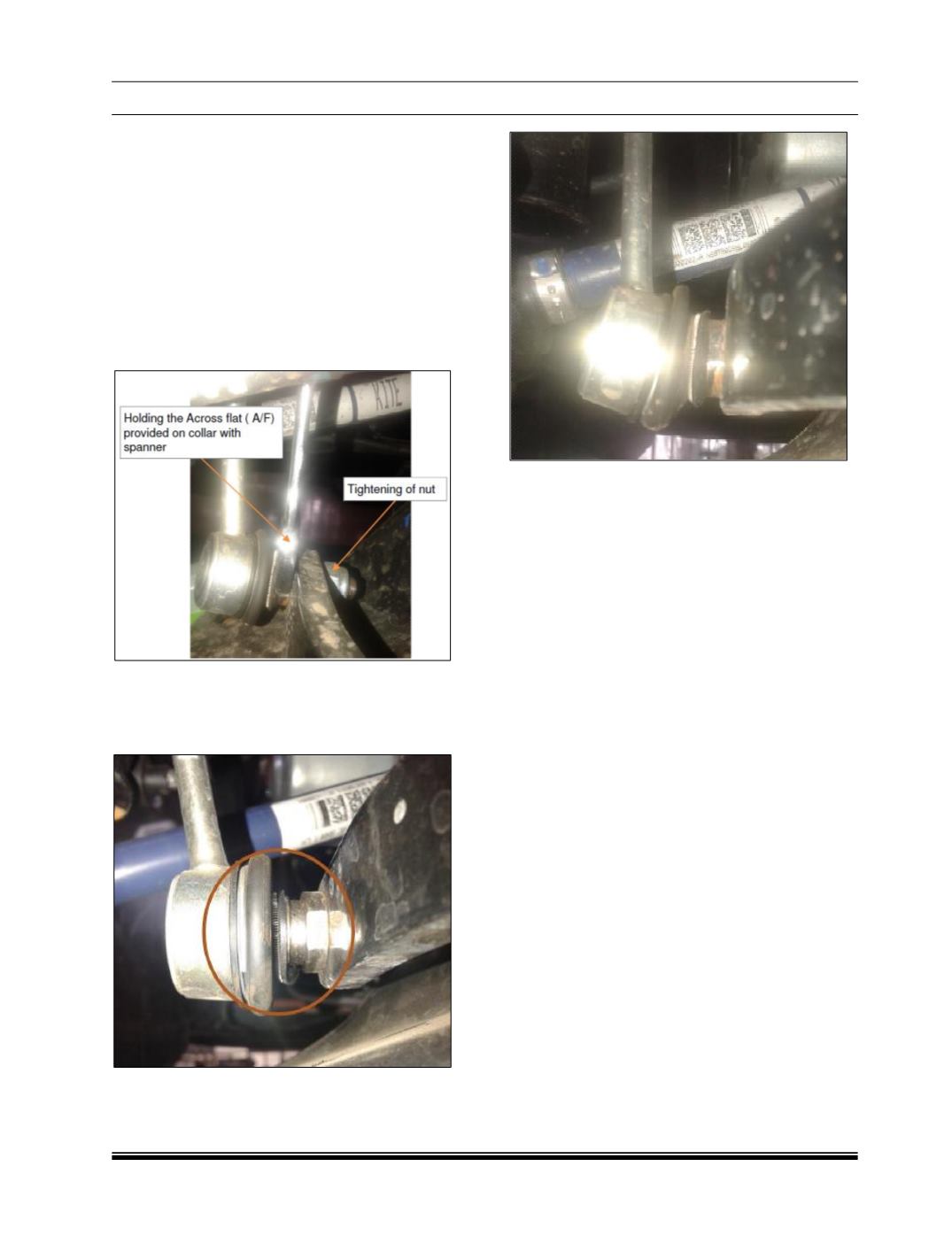

1. While tightening of stab link ball joint, first hold

the across flat provided other side of nut with

spanner and then tighten the nut to desired

tightening torque.Fig.37.

FIG. 37

2. Shifting of boot should not happen on vehicle

while assembly/Tightening of stab link ball

joint. Fig.38a & 38b.

FIG. 38a (Not Recommended)

FIG. 38b (Recommended)

3. If boot shifting is observed before/after while fit-

ment on vehicle, then need not to try for re-fit-

ment of boot to original position on stab link, as

assembly of Retainer ring requires special tool

to bring at its original position. In such type of

cases, strictly we need fit new stab link instead

of boot shifted stab link.
