6. EXPLODED VIEWS FRONT SUSPENSION SYSTEM

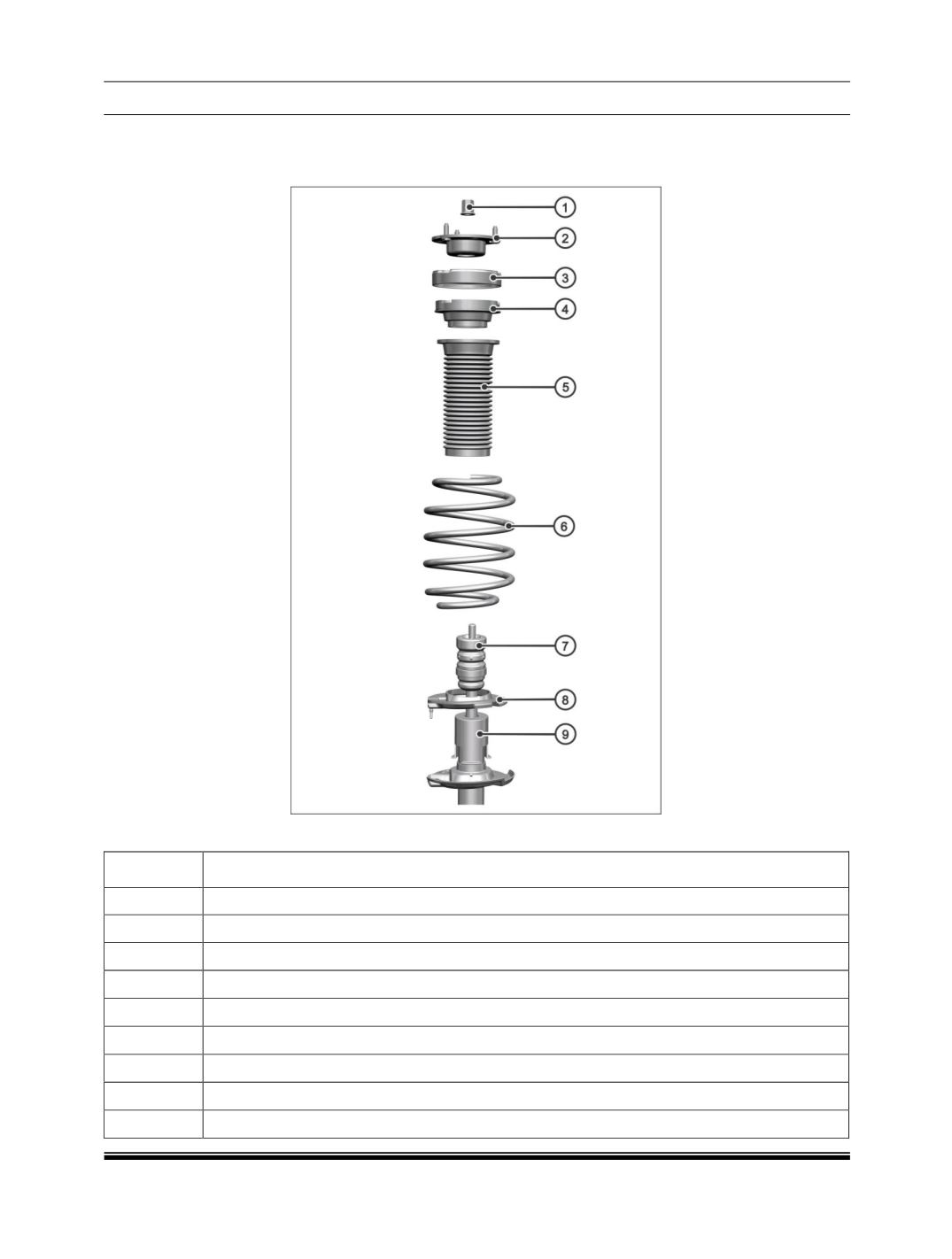

6.1. ASSEMBLY FRONT STRUT EXPLODED VIEW
FIG. 4
SR NO.
DESCRIPTION
1
HEX FL NYLOC NUT M12X1.25-TS17430-10-SS8451S2-YH
2
ASSEMBLY TOP MOUNT
3
BEARING DUST COVER
4
ASSEMLY BEARING COMPLETE
5
DUST COVER
6
SPRING FRONT SUSPENSION
7
ASSEMBLY BUMP STOPPER
8
RUBBER SPRING SEAT LOWER
9
ASSEMBLY FRONT DAMPER
