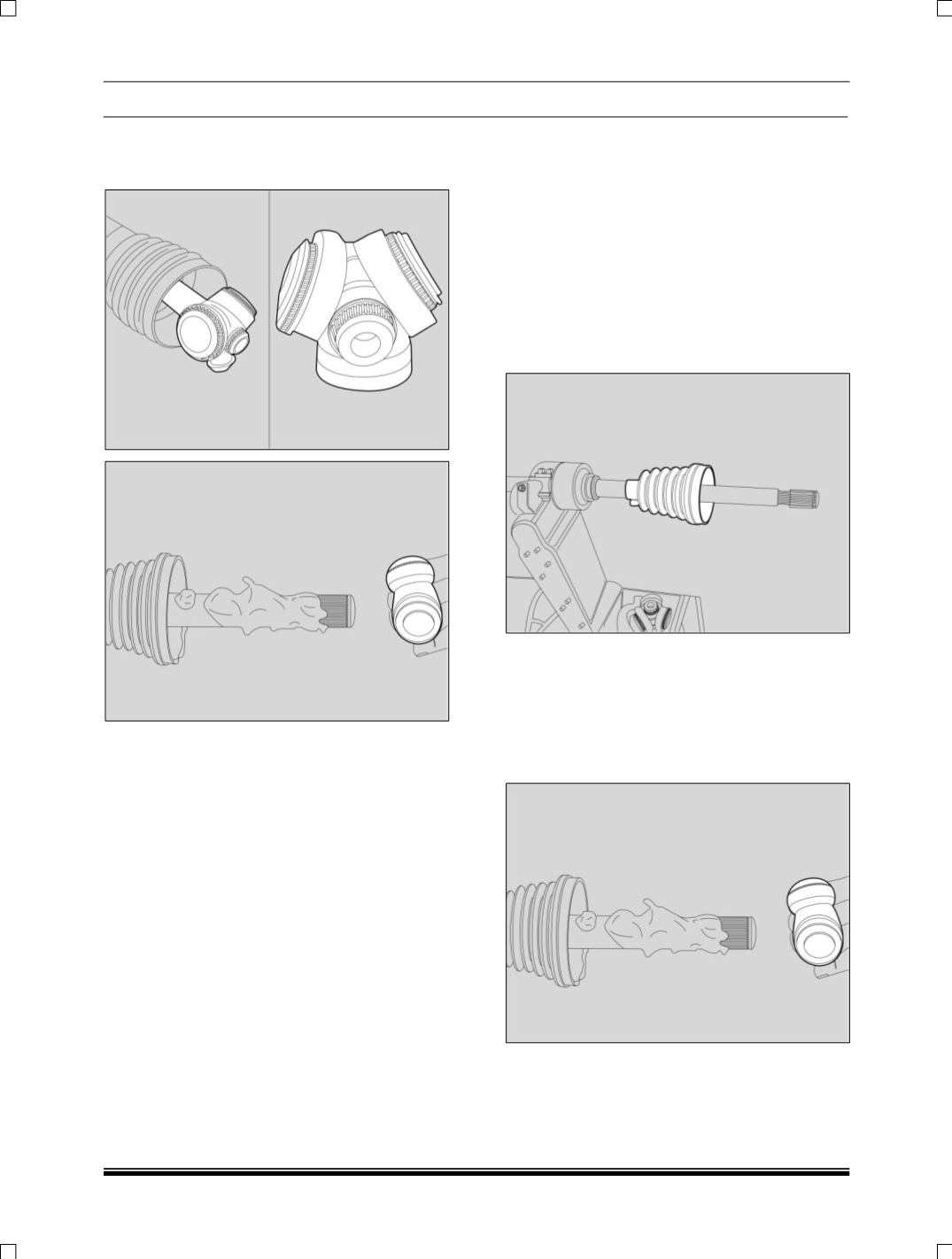

6.Remove the tripot spider assembly from the axle

shaft as showing below figure. If required tab the

spider assembly gently using a nylon mallet.

7.Clean the following items thoroughly with

cleaning solvent. Remove all traces of old grease

and any contaminates.

a. Tripot balls

b. Needle rollers

c. Housing

Dry all the parts. Inspect these parts for damage or

wear.( If any of the parts are damaged, the entire

sub- assembly along with the outer housing needs

to be replaced.)

After this remove the rubber boot from the axle

shaft.

ASSEMBLY PROCEDURE:

1. Install the new small seal retaining clamp on

the neck of the seal. Do not crimp the small

seal retaining clamp. Slide the tripot seal into

the axle shaft, passing over the seal grooves

of the axle shaft towards the CV end of the

axle.

2. Place the tripot spider assembly on to the drive

axle shaft. Assemble the spider assembly to

the axle shaft and tap gently if required. Insert

the new circlip ring using the plier

Important:

Ensure that the ring is fully seated
