TIAGOR

1.2L REVOTRON ENGINE

105



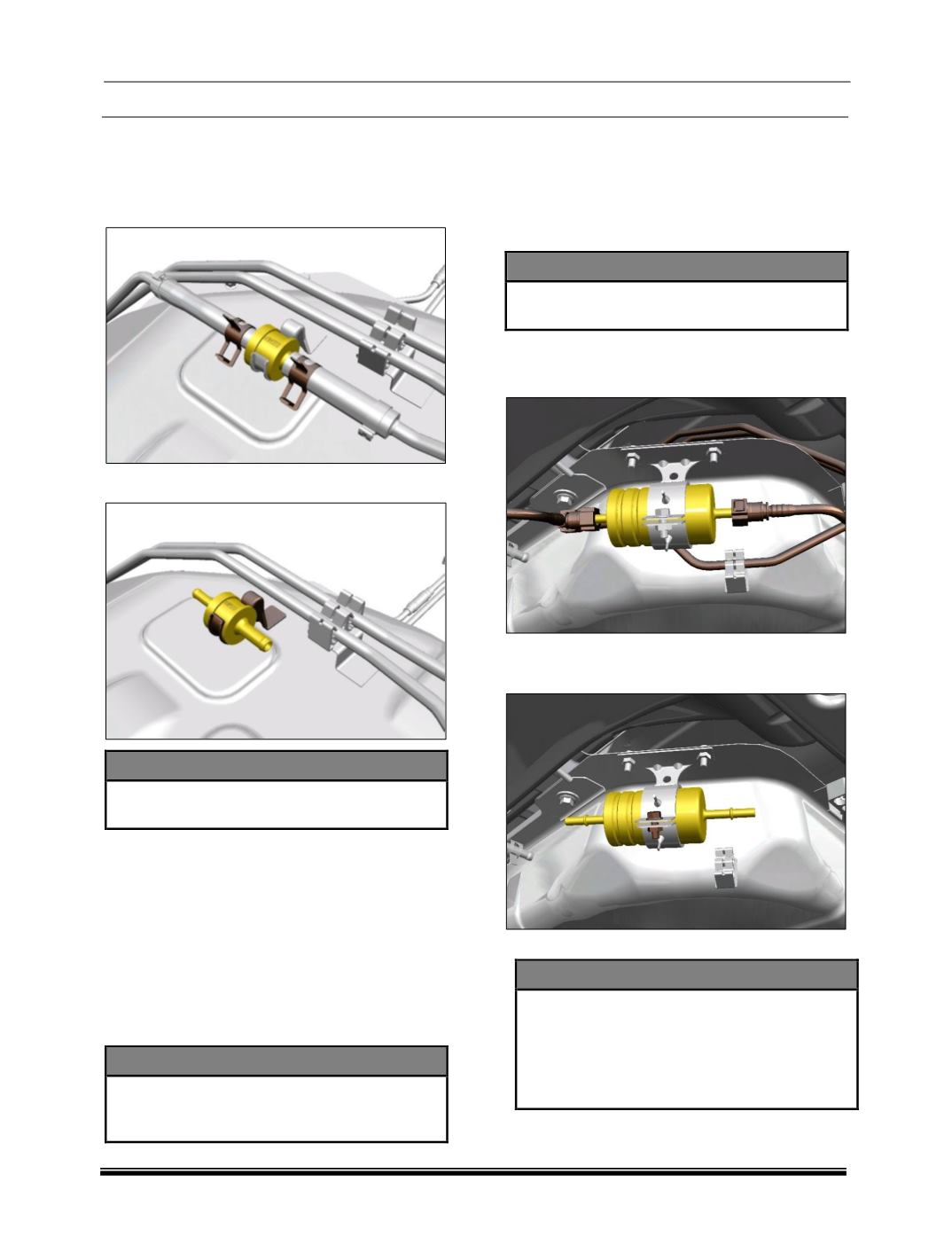

TANK PRESSURE VALVE (TPV)

REMOVAL

1. Remove the tank first.

2. Loosen the clamp and disconnect the pipe.

3. Remove the TPV from the clamp.

CAUTION



Be careful not to damage the vapour line

pipe. If found damaged replace it.

INSPECTION

1. Check tank pressure valve for crack or

damage. Replace if any damage is found.

2. When air is smoothly blown from the tank unit

side it should pass through the valve.

3. Similarly if air is smoothly blown from the open

end side it should pass through the valve.

4. If air does not pass through valve in step 2 or

hard blows are required in step 3, replace tank

pressure valve.

WARNING



Do not suck air through tank pressure

valve. Fuel Vapour

inside

the valve is

harmful.

FITMENT

1. Fit the TPV in the clamp such that the open

side

(orange side)

faces the rear of the

vehicle.

2. Connect the vapour line to the Tank unit side

(black side)

and fix the clamp.

CAUTION



Do not kink/pinch or twist hose when they

are routed.



FUEL FILTER

1. Remove the all pipe connections.

2. Loosen the clamp fastener and remove the

filter.

FITMENT

Follow the reverse order of removal for fitment.

CAUTION



The fuel filter should be replaced as

recommended in the service schedule. If

this is not done, it may result in impurities

or particles entering the High pressure

system causing damage to the Fuel

Injection components.
