1.2L REVOTRON ENGINE
92

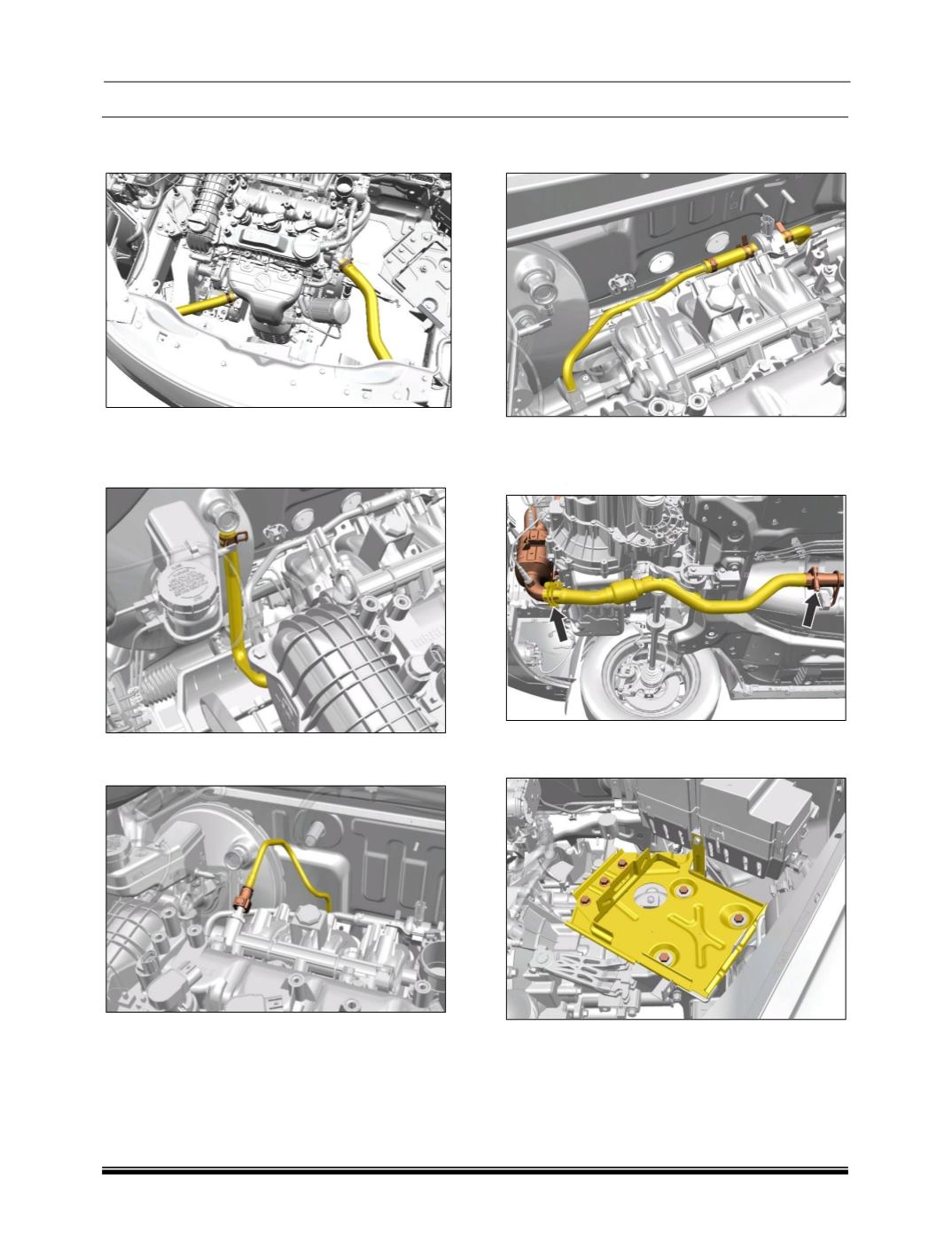

14. Remove all the hoses connected between
radiator and engine.
15. Disconnect and remove vacuum hose
connected between brake booster to vacuum
pump.
16. Disconnect the fuel supply connection to
Engine by relieving the fuel pressure.
17. Remove canister connections from canister
purge valve mounted on intake manifold.
18. To remove exhaust front pipe loosen the
clamp near Catcon and clamp near pre
silencer of exhaust pipe
19. Remove battery tray by removing fasteners
(6Nos).
