B. BLOW BY SYSTEM :

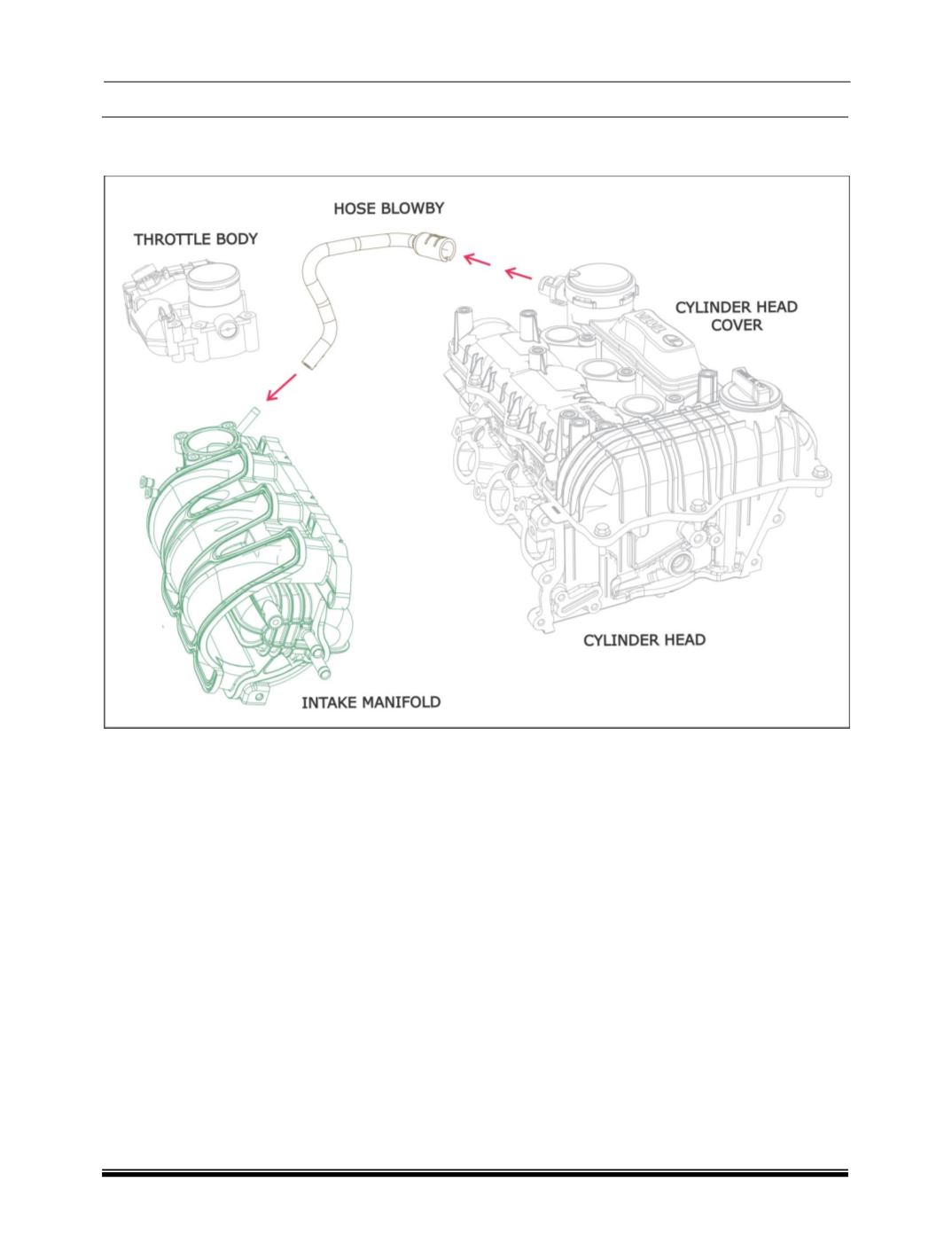

Blow By Schematic Layout
:
1
Cylinder Head Cover
4
Throttle body
2
Cylinder Head
5
Hose BlowBy
3
Intake Manifold
Description :
In order to reduce the blow by gas emission, the
blow by gas is directed to the intake manifold.
Blow by gases are drawn from cylinder head
cover and crankcase.
