ENGINE

158

ix.

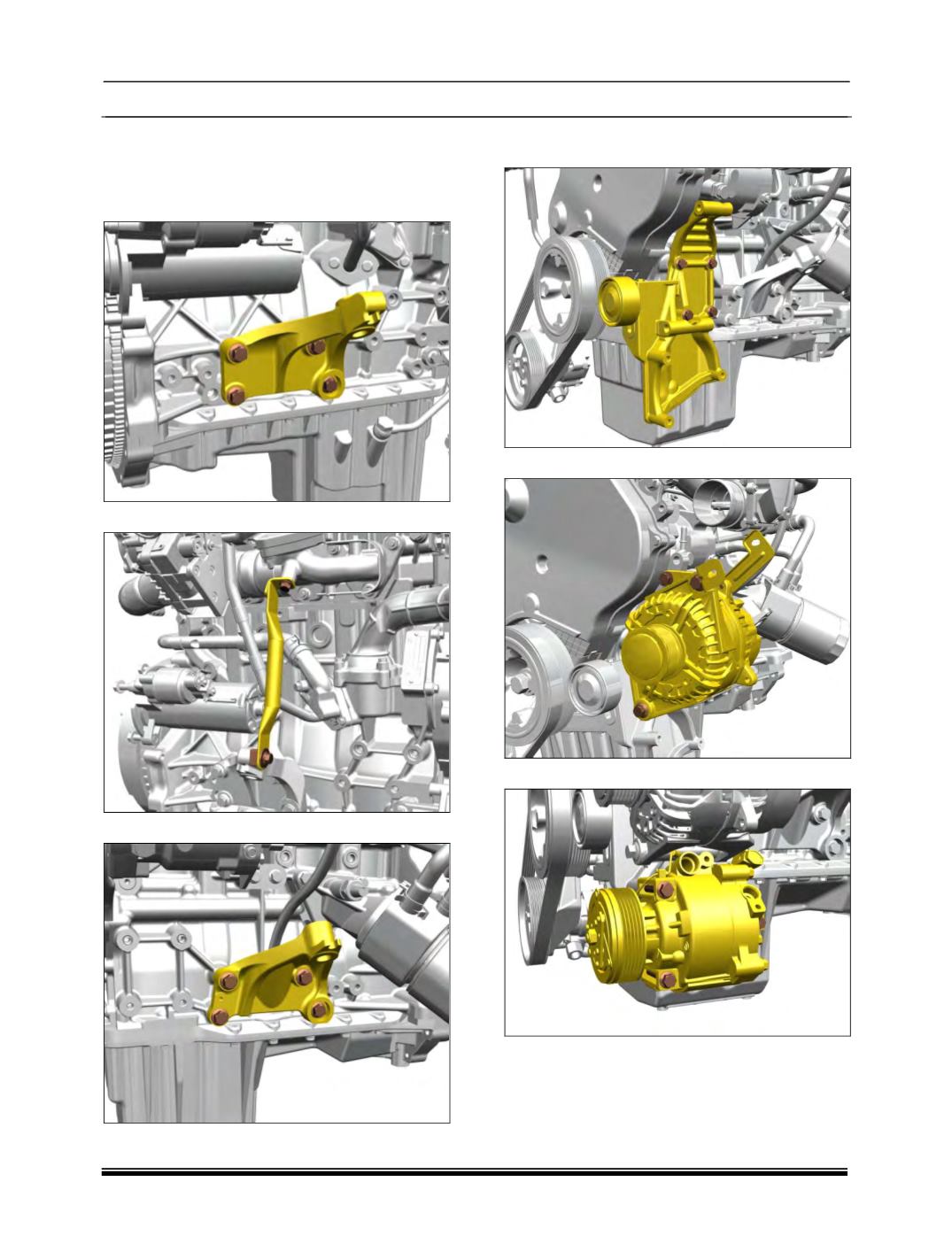

On Engine Support Stand :

1. Remove RH engine mounting bracket.

2. Remove LH Engine mounting bracket.

3. Fit Engine mounting arm RH.

4. Fit Exhaust manifold stiffner assembly.

5. Install Engine mounting arm LH.

6. Install alternator and AC compressor

mounting bracket with AC belt tensioner.

7. Install Alternator.

8. Install AC Compressor.
