the following points by referring TCU parameters using TML diagnostic tool

before handing over to customer.

After key and engine ON with TML diagnostic tool connected, gradually pickup the vehicle and read Clutch speed

values, check that they are non zero and gradually increasing with vehicle speed.

Drive the vehicle through all gears in both Automatic and Manual modes.

Ensure no DTC is active and Transmission Fault Lamp is OFF.

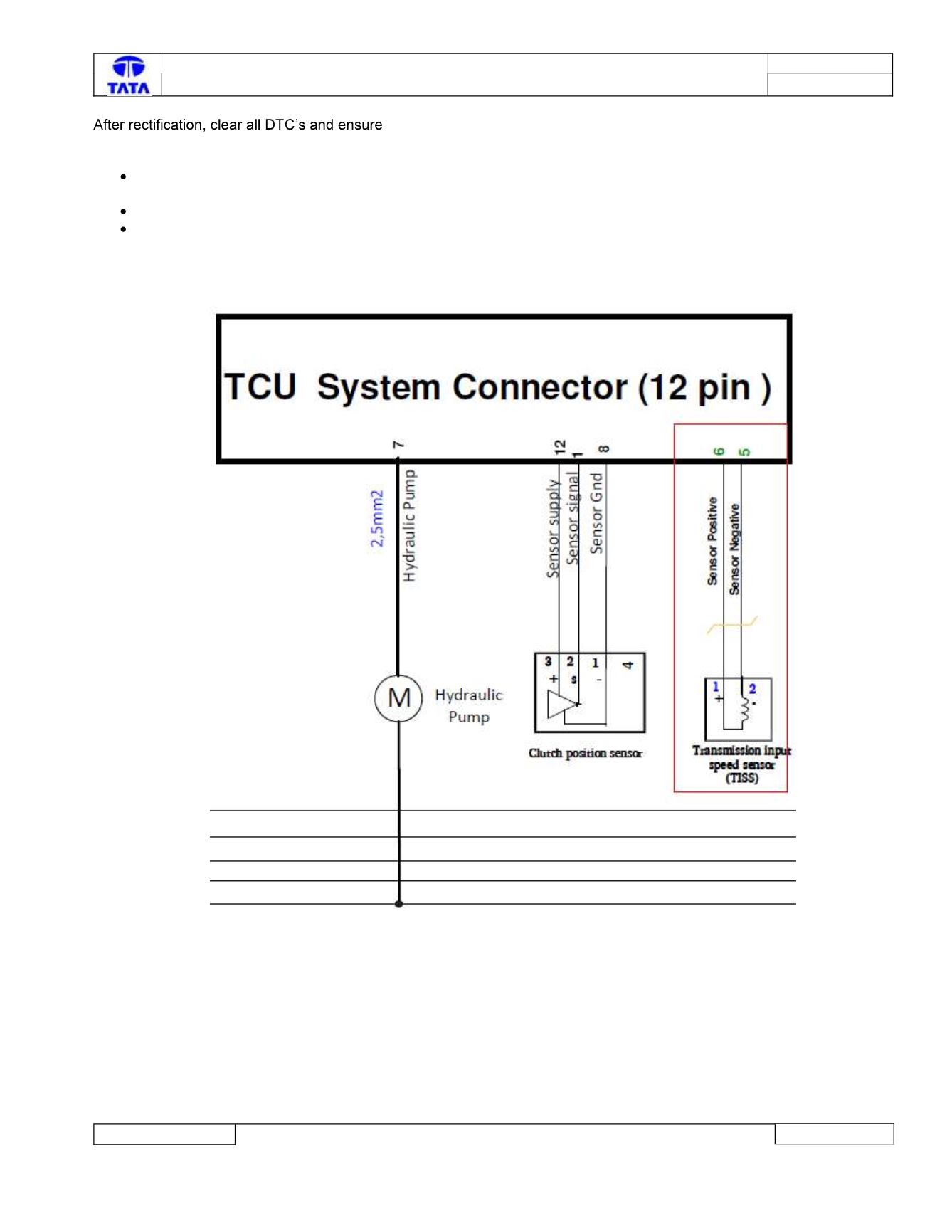

Circuit Schematic Diagram:

Component Location & Image:-

Connector Location: -
